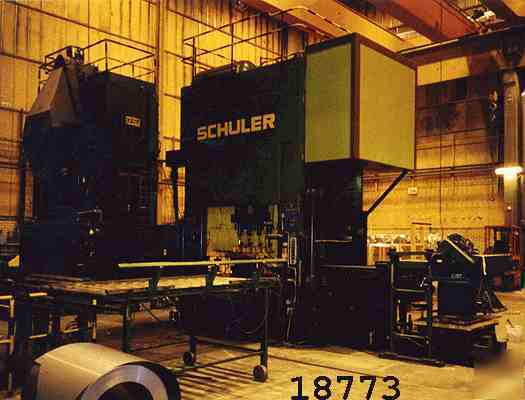

SCHULER MODEL SP-200-2 STRAIGHT-SIDE, DOUBLE CRANK PRESS Capacity: 225 Ton Stroke: 9.85" Shut Height Over Bed (SDAU): 17.73"; Ram Adjustment (Power): 5.32" Bed Area: 78.8" x 63.8"; Slide Face Area: 78.8" x 63.8" (T-Slotted) Window Openings: 47.28" Speed (Variable): 12 - 60 SPM; Air Clutch & Brake w/Selector Controls Ram Arranged For (4) F-B Hydraulic Knockouts; Tie Rod Construction Maximum Coil Weight Capacity & Width: 11,000 Lbs. x 49" Wide Maximum Coil O.D.: 47"; Inside Coil Diameter: 17.7" - 20.5" Feed Rate of Reel (Variable w/DC Drive): 0 - 131 FPM Maximum Capacity of Feed: 51.2" x .0394" (Min. Width: 3.1") Feed Length: 3.94" - 39.4"; Feed Rate: 19.7 IPM @ 60 SPM (Max) EQUIPPED WITH: Complete Coil Feed Line Consisting of: Double-Arm Coil Turnstyle, Travelling Coil Reel w/Hydraulic Hold Down & Adjustment, Feeder, Recoiler and Blank Removal System (w/Conveyors and Stacker) Hydraulic Die Cushion; T-Slotted Bolster Plate (78.8"x64.6"x7"Thick) 22 kW Main Drive Motor; 3 kW Adjustment Motor Operator Control Console; Electrical Controls *** NOTE: PRESS DESIGNED WITH DIFFERENT SIZED PITMAN ARMS RESULTING IN THE CENTER OF FORCE SHIFTING 14" TO THE RIGHT OF PRESS CENTERLINE. TOTAL CAPACITY REMAINS 225 TON. CENTERLINE LOADING OF PRESS IS POSSIBLE USING ONLY 50" OF THE RIGHT-SIDE BED SPACE. *** Approximate Overall Dimensions: 144" L-R x 100" F-B x 210" H Serial Number: 73/20.9745 (New 1973) P2 F.O.B. VASTERAS SWEDEN - $ 40,000.00 Email us at Call our Sales Staff at Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes. Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power. (outside US & Canada) Email: |
