Subject: No. 1 brown & sharpe universal od/zd grinder (17734)

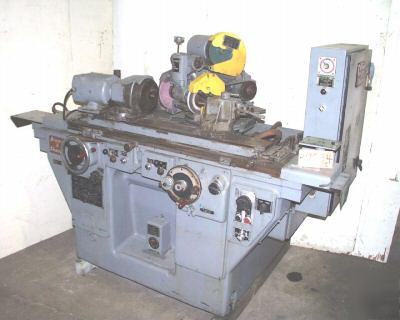

10" x 20", BROWN & SHARPE, No. 1, Universal, ID Spdl, 1967 Our stock number: 17734
Brown & Sharpe MODEL..................................No. 1
Brown & Sharpe SERIAL NUMBER..........................521-1-826 Year: 1967
Brown & Sharpe Universal Grinder GENERAL SPECIFICATIONS
Swing Over Table.......................10"
Distance Between Centers...............20"
Distance, Centerline of Work to
Centerline of External Grinding
Spindle...............................11" Max., 2" Min.
External Grinding Spindle Speeds.......2500, 3000, 3600 RPM
Headstock Speeds, Infinitely Variable..60 to 600 RPM
Sliding Table, Power Travel............3 to 150 IPM
Cross Feeds, Automatic................. .0001" to .003"
Brown & Sharpe Universal Grinder EQUIPPED WITH
1-1/2 HP External Grinding Spindle Motor
1 HP Internal Grinding Spindle Motor
Approximate Weight.....................6000 Lbs.
SPECIFICATIONS SUBJECT TO VERIFICATION
