Subject: Niigata 2 ump horizontal miller

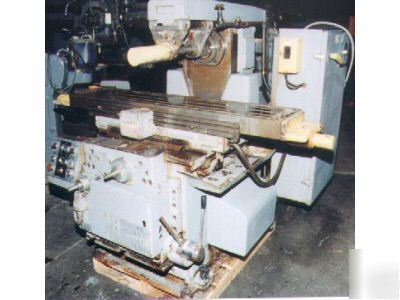

Niigata Horizontal Miller
Model: 2 UMP New: 1974 Serial Number: 58360
Table Working Surface 12.2 x 53.9 in.
Cross Travel to Vertical Spindle Nose, 1.97 min. in. / 17.7 max. in.
Height Table to Horizontal Spindle Center
without overarm 14.2 in. - 29.9 in.
Feeds Longitudinal & Cross Steploss 0.59 to 47.2 in. ipm
Rapid Traverse Rate Long. & Cross 133.9 in/min.
Spindle Speeds 12, range 40 to 1750 RPM
Speeds Head Stepless Vertical Head 0.3 to 23.6 in. min.
Rapid Traverse Vertical Head 47.2 in. ipm
Max. Distance Column Spindle Center 13.8 in.
Distance Column to Horizontal Spindle 13.8 in.
Feed & Rapid Traverse Motor to Table 1.5 H.P.
Feed & Rapid Traverse Motor to Column 2.0 H.P.
Feed & Rapid Traverse Motor to Saddle 1.5 H.P.
Coolant Pump & Turbo Motor ¾ H.P.
360 Degree rotating vertical head motion
Overarm support dual type: Outer arm brace
