Subject: New 75 ton, 3 oz. bury injection molding machine '85

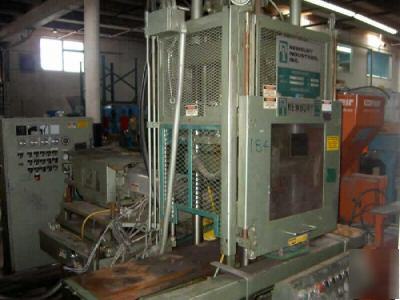

75 Ton, 3 Oz. Newbury Vertical Shuttle Press
Model: V3-75ARS Style: C-Frame Mfg: 9-85
* * * * Excellent Condition * * * *
Mold Clamping Force ......................... 75 Ton
Platen Size .............................. 10" x 10"
Maximum Mold Space ........................ 8" x 10"
Maximum Clamping Stroke ......................... 5"
Minimum Closed Daylight ......................... 8"
Maximum Closed Daylight .................... 10-1/2"
Maximum Open Daylight ...................... 15-1/2"
Center-Line of Injection .................... 5-1/8"
Motor Horsepower ............................. 15 HP
Machine Dimensions ................. 8'L x 6'W x 7'H
Machine Weight ........................... 8,800 lbs
C-Frame Design With Shuttle Table (26")
10" x 62" Shuttle Table with 26" Stroke
Mopac 32 Solid-State Control Panel
Moveable Platen Dual Knockout Cylinder
