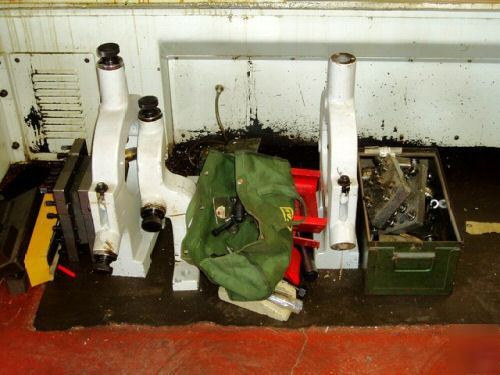

SPECIFICATIONS: SWING OVER BED 23-1/4" SWING OVER CROSS SLIDE 11-13/32" DISTANCE BETWEEN CENTERS 40" SPINDLE NOSE ASA A-1-6 HOLE THRU SPINDLE 2-3/64" SPINDLE SPEEDS 17 TO 2,000 RPM TRAVELS, Z-AXIS 40" X-AXIS 13/16" TAILSTOCK QUILL TRAVEL 6" TAILSTOCK CENTER TAPER MT. NO. 5 MOTOR 20 HP CONT. / 25 HP 30 MIN. WEIGHT, APPROX. 7,100 LBS. EQUIPPED WITH: FANUC 6TB CNC CONTROL WITH CRT RS232 SERIAL PORT 12" 3-JAW CHUCK SIX POSITION FLAT TURRET WITH TOOL HOLDERS FOLLOWREST FOUR POSITION TURRET TOOL POST HYDRAULIC TANK TAILSTOCK ACTUATOR AND DRAWTUBE FOR CHUCK |
