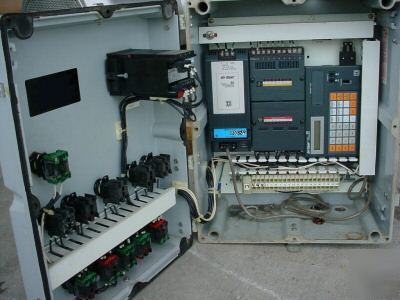

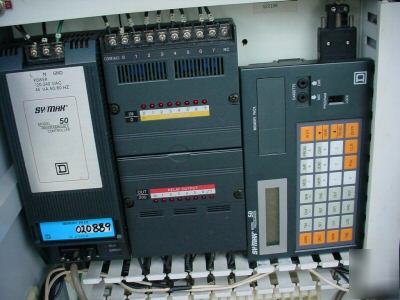

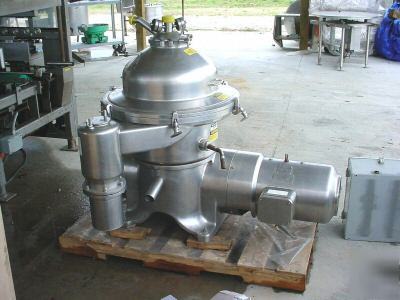

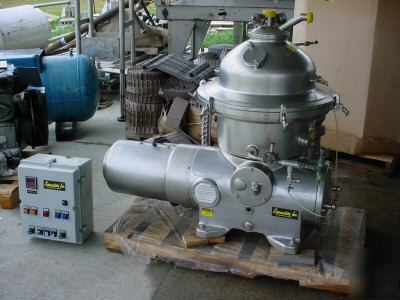

1ea Westphalia Clarifier Disc Type Centrifuge Mod# SAMR 5036-M, Self Cleaning Bowl (new model# MSA 20-06-076) Liquid volume of bowl 3.3gl - Bowl speed 6500rpm - Max swallowing capacity us gpm= 55gpm(3,300gph) - One set of tools - Motor Mfg. Loher (german) - Type A1 60 LA4f - motor#8-208-404 volts: 230/460 amps 50/25 - 17kw (22.8hp) nameplate says 25hp - 1755rpm 60cycle- Bowl diameter 19" - Disc Diameter 4.5" I.D. and 9.5" O.D. Number of discs (.5mm Caulks) 132ea - De-Sludge Space 1.65 gallons - Bowl RPM 6500 - Capacity Factor 23,350 - Formula for G's is 14.2 x (RPM\1000) squared x Dia in inches - Effective G's 5,700 (Disc O.D.) Max G's - Mfg Date 1989 - 9,300 (Inner Diameter of Bowl) We have the manual on this unit and all documentation received with unit - Condition of this unit is Excellent, well maintained and run ready - Photos Attached - Sn-1638-867B-1634-387Fr |
