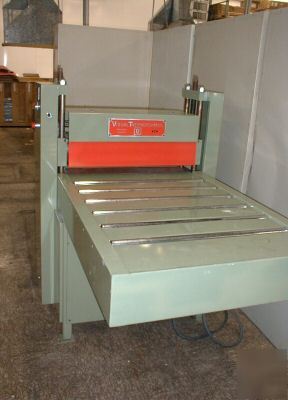

VISUAL THERMOFORMING RT.28-1 ROLL-O-TRIMMER DIE CUTTER Used Visual Thermoforming Model RT.28-1 roller die cutter, 28 wide – Good Condition Very good condition die cutter used in our factory until about a year ago when we stopped making the product this cutter was needed for. Was working very well when decommissioned. This machine is available for inspection in Ocala, Florida by appointment, however there are no 220V outlets where the machine is stored, so I have no choice but to sell it as-is. Maximum part depth 6, 28 wide by unlimited length Shuttle type roller die cutter typically used with steel rule dies. Only lower roller is driven on this model. This is a heavy duty machine designed for general purpose applications. Can be used with master skin cards, sheets of thermoformed plastic products, cork sheets, rubber sheets, etc. to make die cut packages, blisters, gaskets, etc. From Visual Thermoforming’s Website: The RT Series are extremely versatile, low to high production roller cutting presses. These units are typically used to cut a wide range of materials such as: skin packaged products, vacuum formed plastics, blisters, coroplast, cork, rubber and all other steel ruler die cutting applications. The operator places the steel rule die on the feed table with knife-edge up. The material to be die cut is positioned onto the die and covered with a polypropylene sheet. The "sandwich" so formed is then advanced to the main pressure rollers. Operator depresses the start button to initiate the automatic cutting cycle. When the sandwich has exited on opposite side of entry, operator depresses stop button, removes finished cut parts and repeats the process. RT Series can deliver the equivalent in cutting pressure of up to 150 Ton press or more. All RT Series (except RT22-1) are equipped with heavy duty 7 1/2" diameter steel rollers and bearings. Also available are extra heavy duty 10 1/2" diameter steel rollers and bearings. The steel rollers are driven by a double roll steel chain, powerful motor and transmission. All RT Series (except RT22-1) can be ordered either as single or double driven pressure rollers. Rapid, simple and accurate single point adjustment. Inexpensive steel rule cutting die cutting against a polypropylene or polyethylene 1/4" thick sheet, avoids any make ready whatsoever. Power on, cycle start and emergency stop buttons located on center column of machine, easily accessible to the operator from either side of working station. The main frame is a welded steel sturdy construction, with removable sections to allow servicing of the motor and gear drive assembly. All parts are covered by a 1-year warranty. Operator safety main roller shut down on reverse guards are standard on every machine. |
