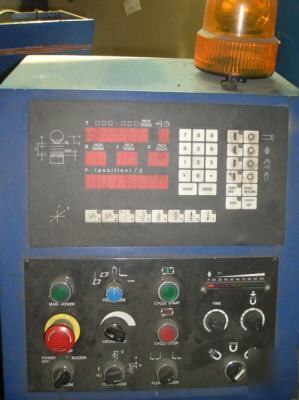

USED WILTON MODEL NO. APSG-3A820 8 x 20 AUTOMATIC (3 AXIS) SURFACE GRINDER (2000) Table speed (Infi variable): 1-25 M/min Auto increment feeds: .15-7.5mm Handwheel per graduation: .001 Handwheel per revolution: .2 Handwheel per graduation: .0002 Handwheel per revolution: .05 Wheel size (dia x width x bore): 8 x ½ x 1-1/4 Electrics: Currently wired at 440v / 3ph ¨ The precision spindle and motor are a direct drive, one piece design, dynamically balanced to minimize vibration ¨ Both longitudinal and cross slideways are precision hardened and ground ¨ Meehanite Cast Iron Construction maximizing rigidity and accuracy ¨ High Precision Cartridge-type Spindle with lubricated-for-life anti-friction ¨ Turcite coated way system on both the table longitudinal and cross feed ¨ Automatic Lubrication System ¨ Microprocessor based control system ¨ Step-by-step data input system makes control easy to program ¨ Stock removal rates and feed conditions are digitally inputted ¨ Fully automatic grinding cycle for coarse and fine grinding combine with spark ¨ Traverse and plunge automatic cycles ¨ Digital display of data provides operator with continuous monitoring information ¨ Adjustable magnetic chuck holding power and demagnetizing time adjustment Be sure to add me to your favorites list! Be sure to add us to your favorite sellers list for daily additions!!! For more specs on this machine and others please visit 6% Michigan sales tax where applicable. It is the user’s responsibility to provide proper safety devices and equipment to safeguard the operator from harm for any particular use, operation or set up, and to safeguard adequately the machine or machines to conform to all Federal, State and Local Government Safety Standards, and all Industry Safety Standards. |
