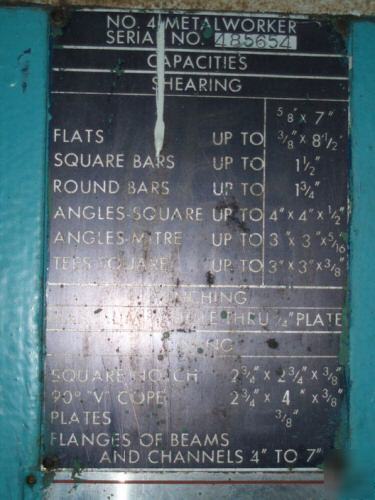

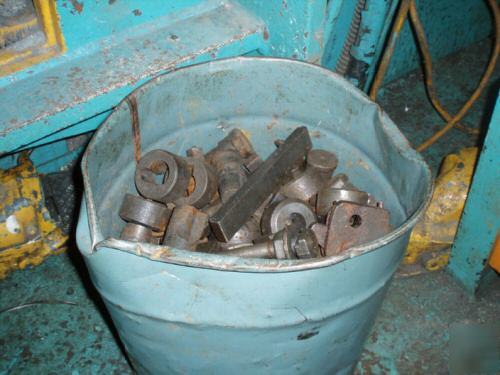

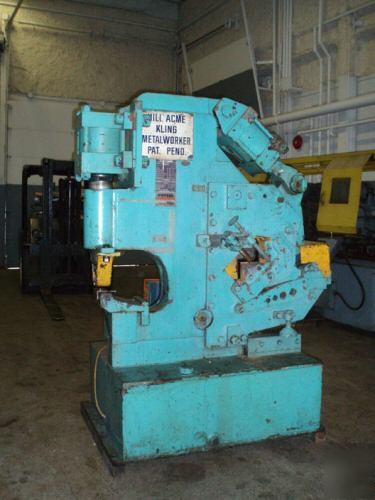

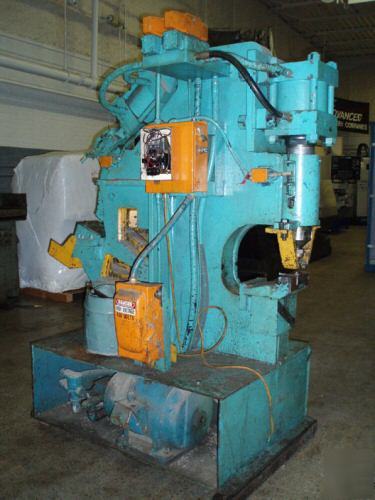

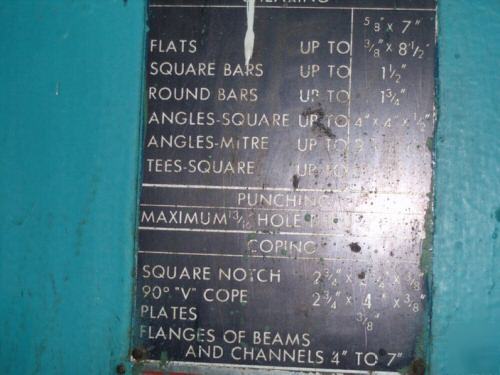

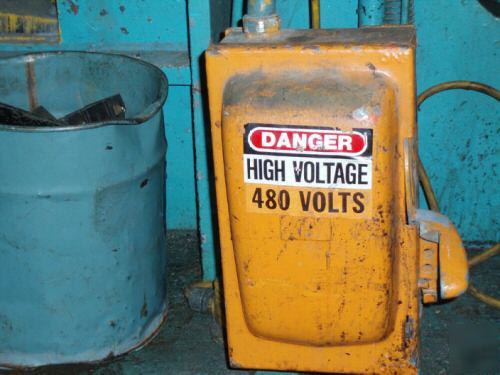

This is a used No. 4 Hill-Acme Kling Ironworker, Serial Number 485654 that was new around 1963. We have used this machine for a few projects around here and it works great. It includes a 5 gallon bucket that is about 75% full of punches. The only thing missing is a cover over an electrical box that blew off when we brought it over from the warehouse (see photo) We believe the specs are as follows, but cannot be certain to their complete accuracy: Max Dia. Thru Thickness 1 1/16 thru 5/8 Dia. Thru Max Thickness 13/16 thru ¾ Flats/Maximum Thickness & Width 5/8 x 7, 3/8 x 8 ½ Angels - 45° Miter 3 x 3 x 5/16 Square Notch 2 ¾ x 2 ¾ x 3/8 90° “V Cope 2 ¾ x 4 x 3/8 Flanges of Beams & Channels 4 to 7 Electrics 480/3/60 Approx. Floor Space 39 x 69 x 77 |
