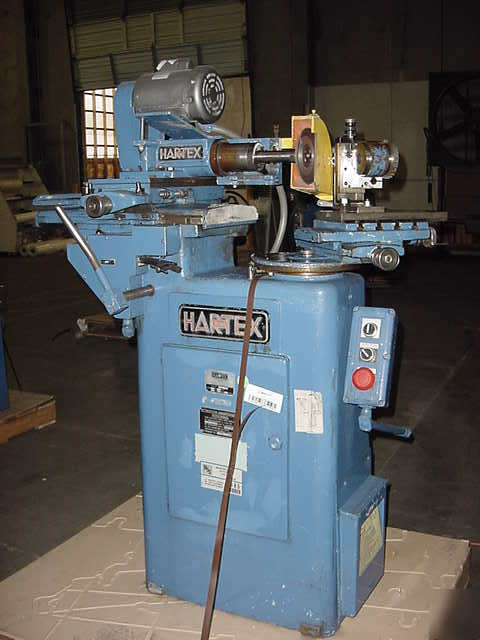

Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy * Manual Lathes, Mills, Drills, Saws * Grinders, Hones, Finishing * Ovens, Furnaces & Environmental TOOL & CUTTER GRINDER, Hartex 3 RADIUS GRINDE TOOL & CUTTER GRINDER, Hartex 3 RADIUS GRINDE HARTEX RADIUS-TANGENT TOOL & CUTTER GRINDER MAXIMUM CUTTER DIAMETER............................. 10" RADIUS-CONCAVE...................................... 5-1/2" RADIUS-CONVEX....................................... 5-1/2" MAXIMUM LENGTH OF FLUTE ACCOMMODATED WITH 2" WHEEL SHAFT EXTENSION............................ 7" LATERAL WHEELHEAD MOVEMENT......................... 5- 1/2" TRANSVERSE, QUICK ADJUSTMENT ON TEE BOLT SLIDE..... 6- 3/4" TRANVERSE, FINE ADJUSTMENT SCREWFEED WITH BACKLASH ELIMINATOR................................ 3- 1/4" TRANVERSE TOTAL.................................... 9" PARALLEL TO CUTTER AXIS, FINE ADJUSTMENT, SCREWFEED.......................................... 3- 1/4" PARALLEL TO CUTTER AXIS, QUICK ADJUSTMENT, TEE SLOT SLIDE......................................... 6" PARALLEL TO CUTTER AXIS TOTAL...................... 9- 1/4" NORMAL TO CUTTER AXIS, QUICK ADJUSTMENT, TEE SLOT SLIDE......................................... 10" NORMAL TO CUTTER AXIS, FINE ADJUSTMENT............. 2- 3/4" NORMAL TO CUTTER AXIS TOTAL....................... 12- 3/4" WORKTABLE SIZE.................................... 8" X 9" VERTICAL MOVEMENT OF WORK HOLDER.................. 2- 3/4" ROTARY MOVEMENT OF WORKTABLE ON PRELOADED TAPERED ROLLER BEARINGS (GRADUATED IN DEGREES).... 210 DEG. CENTERLINE OF WHEELHEAD SPINDLE TO PIVOT POINT OF WORKTABLE...................................... 7-3/4" SPINDLE SPEED ................................. 4,700 RPM MINIMUM/MAXIMUM DIAMETER.......................... 4"/6" FACE/THICKNESS................................... 1/8"/1/2" BORE.............................................. 5/8" APPROXIMATE WEIGHT .............................. 900 LBS. APPROX. FLOOR SPACE ............................. 44" X 24" "INDENT ATTACHMENT" - ELECTRICALYY ACTIVATED FOR POSITIVE GRINDING & BLENDING OF A TRUE RADIUS WITH TWO STRAIGHT SURFACES INSURING PERFECT TANGENCY OF THE RADIUS WITH THE STRAIGHT SURFACE. THE INDENT FIXTURE AUTOMATICALLY LOCKS THE GRINDING WHEEL SLIDE AT THE PROPER CENTER POINT LOCATION AND AUTOMATICALLY RELEASES THE WHEEL HEAD SLIDE AT THE END OF THE RADIUS ARC ENABLING THE GRINDING ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE ** Machine Location: HARRISON, NJ Click Here For More Hartex Machines Click Here For More Grinders, Lappers & Hones - TOOL & CUTTER GRINDERS(s) Call Andy at ext 7600 Call Alex at ext 7613 Finance This Equipment For Your Business - Click Here Finance Equipment For Your Business - Click Here * Machinery Values is one of the world's largest machinery dealers, in business since 1971. * New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines. * Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this. Summary of My Selling Policies Machinery, Tooling and Accessories used in manufacturing are usually exempt from sales tax in our state (New Jersey). A sales tax exemption certificate may be required if you are a New Jersey company. Equipment purchased for personal use is subject to sales tax if you are a New Jersey resident. Read my policies on my SquareTrade Seal |
