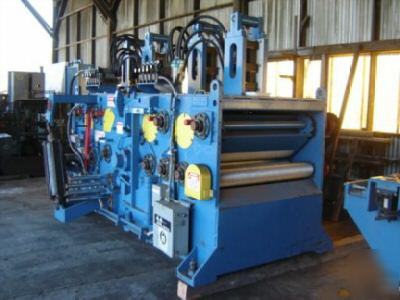

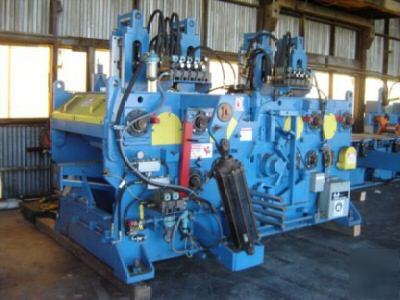

EDGER FEED RATE 400 FPM / GANG (3 PPM) 700-800 fpm / board (15 ppm) TARGET SIZES 6/4" - 1.635 (1/24/05) MATERIAL SIZE LENGTH 8' TO 26' (BOARD) WIDTH 3-1/2" TO 18" (BOARD SIDE)(24"FUTURE) BOARD SIZE THICKNESS 1" TO 2",& 4" SQUARES (BOARD SIDE) ARBOR DRIVE 400 HP (NO MOTOR) EDGER FEED DRIVE 50 HP (NO MOTOR) SAW GANG SIDE 20" X 6" #3 X .090" X.120" X 2800 RPM X 40T X 30 DEG. SAW BOARD SIDE 20" X 6" #3 X .120" X 160" X 2800 RPM X 65T X 25 DEG. INFEED SYSTEM SOLD SEP. SEE WEBSITE TOO MUCH TO LIST // ROSEBURGTRACTOR.COM OR CALL OR THANKS, |
