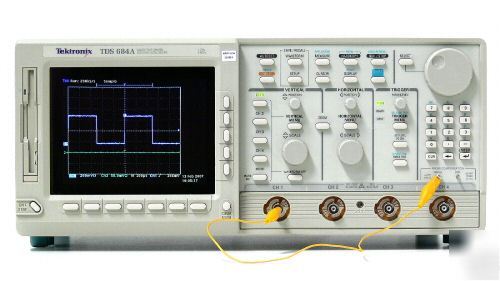

Tektronix TDS684A/13/1F/2F 1 GHz Digitizing Oscilloscope This series was in production by Tektronix: Jan-01-1995 to Nov-01-2000 * Number of Channels: 4 (may be operated simultaneously) * Simultaneous Maximum Sampling Rate/ch: 5 GSa/s * One ch. only max. sampling rate: 5 GSa/s * Max. Record Length: 15000 pt * Min. Vertical Sensitivity: 1 mV/div * Maximum Vertical Sensitivity: 10 V/div * Input Impedance: 1 MOhm, (alternate) 50 Ohm * Maximum Input Voltage: 400 V rms * Time measurement accuracy: < 50ps @ 5 GS/s * Timebase accuracy: +/- 100 ppm * Trigger Source: External, Internal * Trigger Modes: Auto, Edge, Normal, Pulse, Single * Display Type: Color CRT, 7 inch, 17.78 cm * 13: RS-232 & Centronics Printer Ports * 2F: Advanced waveform DSP Math Accessories included: On CD: User's Manual, Reference Manual, Technical Reference Manual, Service Manual. Additionally: Front cover, Accessories pouch, Power cord (US type only) More about the instrument: Serial number: B010247. As you can see in the pictures, it is in good condition with few signs of wear and tear. Photos on this page are of an item similar to the one offered here. It is in the same good condition Guaranteed to be clean and fully operational, with 14-day right of return About us: For 15 years Naptech has sold many thousands of pieces of test equipment to thousands of companies including to Government Contractors. We have five full-time engineers to ensure every instrument we supply performs reliably and to full manufacturer's specs. Naptech has a reputation for providing quality equipment at a reasonable price. You can find Naptech on the world-wide web Thanks for viewing our listing. Want to live a worthwhile life? Consider what will be written for your epitaph Finance Equipment For Your Business - Click Here |
