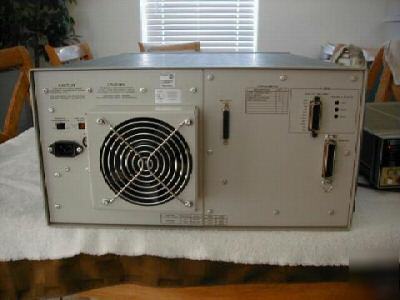

This Tektronix 11801B Digital Sampling Oscilloscope offers the widest range of on-board measurement and waveform processing capabilities. The bandwidth of the unit is DC to 50GHz with a rise time of 7 ps (depends on the plug in). It has a sampling rate of 200 kS/s. It has 8 channels and features automatic measurements for Jitter/Noise, Statistical, Histograms, Mask Testing, and Pulse with statistics. It has the Printer, GPIB, and RS 232-C ports on back. *** Form Factor: Mainframe *** Bandwidth: 50 GHz (depending on the plug in) *** Number of Channels: 8 ch *** Max. Record Length: 5120 pt/sec *** Rise time: 8.8 ps *** Number of Bits: 8 bits *** Main time base: - lowest 1 ps/div *** Main time base: - highest .005 s/div *** Trigger Source: External,Internal *** Trigger Sensitivity: 40 mV. I got this information off a web site, so some unit may vary. The Tektronix SD-26 is a dual channel, 20 GHz sampling head. This sampling head has the same acquisition capability as the SD24 TDR/Sampling Head but does not include the TDR step generators. Acquisition rise time of 17.5ps. It has + or - 3V max, 50 Ohms inputs. Used with TEK 1180XX digital sampling oscilloscopes and TEK. CSA 803A analyzers. Reasonable offers are always well come. REASONABLE ONES! This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html |
