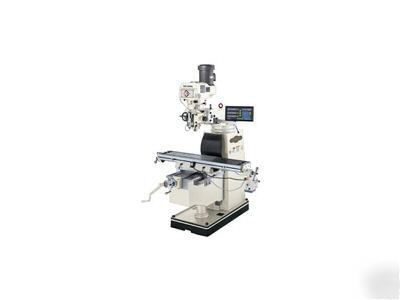

SHOP FOX M1006 Vertical Mill 10" X 54" w/ Digital Readout - NEW Receive a W1735 3/4 HP Dust Collector by purchasing this machine!! A $210 value. Our largest mill has all the features necessary for an industrial shop: a powerful 3 HP, 3-phase motor with variable speeds from 80 to 4250 RPM, a 10" x 54" table, longitudinal power feed, and a digital readout. The 3 axis digital readout has a 5µm resolution, machine error compensation, absolute/incremental coordinate display, arc/line of holes/angled cut functions, and 199 user defined datum points. Rest assured, this machine has the capability to complete the hardest jobs with extreme precision and repeatability. * Quill feeds/spindle rev.: .0019", .0035", .0058" * Auto stop w/micro adjustable stop * Hardened & ground table surface * Chrome plated, precision ground quill * Adjustable micrometer quill depth stop * Motor size: 3 HP, 220V, 3-phase, TEFC * Table travel (longitudinal): 33-3/4" * Table travel (cross): 15-1/2" * Max. dist. spindle to column: 24-1/2" * Max. dist. spindle to table: 17" * Head swivel: 90° both ways * T-slots: 3 on 2-1/2" centers, 1/2" stud * Variable speed range: 80 - 4250 RPM Thank you for your business. Visit our store here! |
