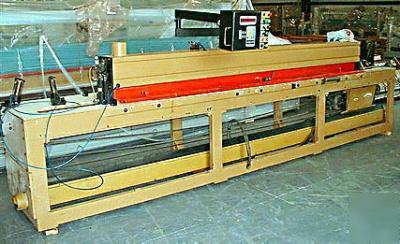

SCMI - Z-45 Horizontal Beam Panel Saw with EPIC-2 Controller * 144" Length of cut, 3 1/8" Maximum depth of cut, 13 3/4" blade diameter. * 12 HP Main Saw Motor, 1 1/2 HP Scoring Saw Motor * 3700 RPM Main Blade, 8000 RPM Scoring * Features 2 speed forward cutting at 50 or 100 fpm forward and 100 fpm return * Programmable rear fence (pusher) for placement of board for cutting, approx. 10 fpm forward and return speed * EPIC-2 Controller set in control panel on left hand side of machine, has bright LED readout for absolute positioning of the rear fence (pusher). Accuracy via rack and pinion drive. * Saw stroke has 2 intermediate selectable positions to shorten stroke when desired * Seperate saw kerf control to allow accurate control of part size when going from one blade to another * Phenolic covered tables, crosscut fence with (2) pop-up style stops, (2) front tables and control head mounted on swing arm |
