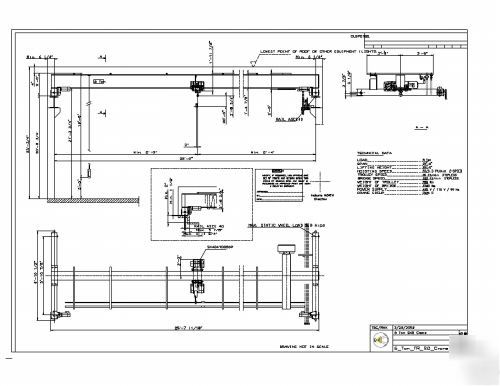

Finance Equipment For Your Business - Click Here IF YOU ARE LOOKING FOR AN OVERHEAD CRANE AND HAVE THE SPACE TO ASSEMBLE YOUR OWN CRANE THIS WILL SAVE YOU MONEY. THE STEEL BEAM IS NOT INCLUDED IN THE CRANE KIT. This is a R&M 5 Ton Overhead Crane Kit x 25Ft Span less the steel Beam. One (1) RM 5 Ton Electric Wire Rope Hoist with Motorized Trolley Two (2) End Trucks with motor and gearbox for each one One (1) Control Panel with Variable Frequency Drives for the trolley and bridge One (1) Pendant Station with Quick Connect Plug One (1) Festoon Electrification System to Run the length of the bridge beam (25ft) Beam is not included. One (1) Assembly manual and One (1) Maintenance and Parts Manual Crane type........................................... QXSk5-TON x 25ft Hol:20.01ft Span............................................................ 25'-0" Crane load (SWL)........................................... 10 000 lbs Number of hoists............................................ 1 ps Hoisting height............................................ 20'-0" (max 29'-6 5/16" ) Hoist type..................................................... SX40410050P35FCL0F Trolley rail gauge............................................ N/A Crane use..................................................... Indoor Crane group................................................... CMAA C Hoist group.................................................... ASME H4 Hoist traversing group...................................... CMAA C Bridge traveling group...................................... CMAA C Hoisting speed........................................... 20/3.3 ft/min 2-speed Trolley traversing speed............................... 65 ft/min stepless Bridge traveling speed................................. 100 ft/min stepless Dynamic coefficient for live load........................ 1.15 Dynamic coefficient for dead load...................... 1.1 Sideways pull factor........................................ 1.05 Crane acceleration.......................................... 0.82 ft/s² Weight of crane (with hoists)............................ 3 570 lbs Weight of crane bridge (without hoists)............... 2 740 lbs Weight of one hoist and trolley.......................... 820 lbs Weight of one end carriage............................... 210 lbs Weight of one crane traveling machinery............. 20 lbs Weight of bridge panel..................................... 60 lbs Weight of one main girder................................ 1 900 lbs Weight of crane service platform........................ N/A Main girder type......................................... Profile - W14x74-MatA36 (Beam to be supplied by others) Main voltage.......................460 V /60 Hz (Can be 230/3/60 if requested) Control voltage............................................... 115 V Nominal power of crane.................................... 8.8 hp Main fuse size at bridge panel.......................... 15 A Maximum current of crane*).............................. 52.8 A Nominal current of crane*)................................ 14.1 A Power factor at starting current......................... 0.78 Power factor at nominal current......................... 0.93 - This R&M Crane kit is extremely easy to assemble and has Quick Connect Plugs to the motors and control panel to eliminate the hard wiring of cranes. - If for some reason you do have difficulties in assembling the crane kit Hoosier Crane will be more than happy to assist over the telephone or via email. |
