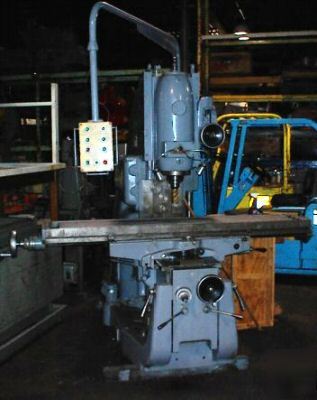

21 Spindle speeds 28 to 1300 rpm Has power down feed on spindle, Spindle taper no. 50 Throat depth frame to center of spindle 18.5" Table travel 40" long x 16" cross x 14" knee vert. x 10" head travel Has 4 way adj. stops on vert. spindle head Has adj. stops X-Y-Z (powered X-Y-Z) Main drive motor 15hp. 220/440 3ph. Approximate dim. 8' front to back x 8'W x 8.5'H |
