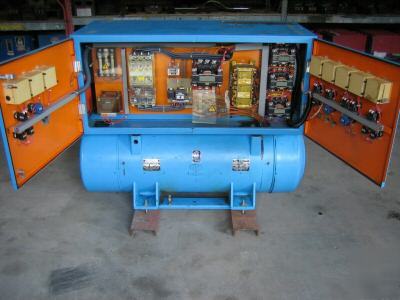

This Pillar 75 KVA 400 Cycle generator is driven by a 460 V motor. The motor and generator are together (intregal) as one unit. The control panel is on top of this unit and is also complete including a Klockner-Moeller breaker. This unit came out of an airplane manufacturing plant (located in an environmentally controlled room) and was used in conjunction with three other similiar units for testing. This unit and the other units were used very little. We have another unit available with slightly bent upward front doors. Both units do not include a Hertz / Hz meter. - p.f. 0.9 (so generator is 0.9*75 = 67.5 KW) VDE 0530 BEARING 6314C3 1.37 t SHELL ALVANIA R3 OR CYPRINA RA After 4000 h 29 cm3 relubricates Inside Door / Control Panel Nameplate - Control Cabinet VA 8 42 7242 No. 1.325/45 - Machine VA 8 33 4792 No. 142/942 - Input-Mains: 460 V 123 A 60 Hz - Output 208/120 V 208 A 415 Hz If you need more photos I can send them to you. If you have any questions, I will do my best to answer them. Please be as specific as you can. Our business has been in operation for over 20 years. |
