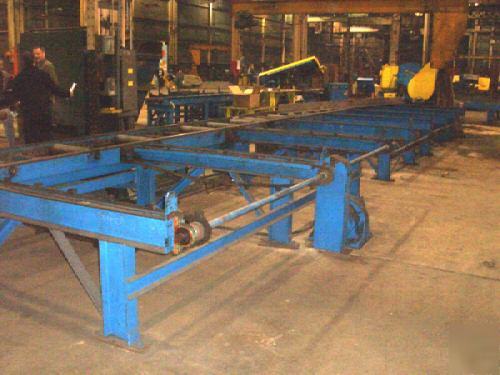

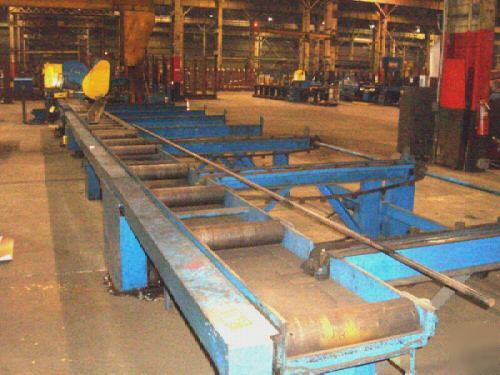

Machine capacity: Maximum: 12 round, 10.5 square Minimum: 1.5 round or square Electric Motors: Blade spindle: 50 HP, 1750 rpm, 440 volt Hydraulic: 10 HP, 1750 rpm, 440 volt Controls: General Electric Series One Programmable Controller Hydraulics: Vickers pump, flow control and control valves. Auto measuring: Gripper conveyor w/ 1-24 stroke (programmable for multiple strokes) Sawblades: 2.0 to 7.5 material – 28 diameter 7.5 to 10 “ material – 34 diameter 10 to 12 material – 39 diameter Dimensions: Approx. 92 x 72 ¨ Clamping on both sides of blade ¨ 43’ Powered infeed and 16’ Powered outfeed w/ powered push off arm ¨ Tilt away conveyor with small parts chute and cut parts receptacle ¨ Chemaperm magnetic chip conveyor ¨ All US components, including Vickers hydraulics, Timken bearings, General Electric controls and Horsburgh & Scott gearbox. ¨ (4) 79 Drag type cross conveyors (13’6 overall width) ¨ 43’ x 18 wide powered infeed roller conveyor ¨ Tilt away conveyor with small parts chute and cut parts receptacle ¨ 16’ x 18 wide powered outfeed with powered pusher ¨ (5) 10’ storage arms (12’11 overall width) Be sure to add me to your favorites list! Be sure to add us to your favorite sellers list for daily additions!!! For more specs on this machine and others please visit 6% Michigan sales tax where applicable. It is the user’s responsibility to provide proper safety devices and equipment to safeguard the operator from harm for any particular use, operation or set up, and to safeguard adequately the machine or machines to conform to all Federal, State and Local Government Safety Standards, and all Industry Safety Standards. |
