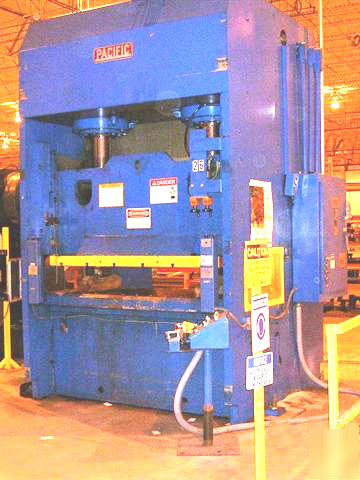

PACIFIC MODEL 225-OBL-6 HYDRAULIC STRAIGHT-SIDE PRESS* Capacity: 300 Ton (Forming); 225 Ton (Punching) Stroke: 12" (Maximum) Open Height: 20" Closed Height: 8" Bed Area: 72" L-R x 36" F-B Slide Area: 72" L-R x 36" F-B (T-Slotted) Distance Bolster to Floor: 40-1/2" Window Openings: 30" W x 16" H Speeds: 360 IPM - Rapid Advance 132 IPM - Fast Press 36 IPM - Normal Press 228 IPM - Return Adjustable 6-Point Square Gibbing Flush Floor Design EQUIPPED WITH: Automatic Centralized Lubrication System Adjustable Stroke Setting Pressure Adjustment with Gauge T-Slotted Bolster Plate 40 HP Main Drive (Pump) Motor Electrical Controls Pedestal Mounted Operator Station Dual Palm Button Operation Approximate Overall Dimensions: 105" L-R x 96" F-B x 144" H Approximate Weight: 52,000 Lbs. Serial Number: 9050 (New 1980) P2 F.O.B. Philadelphia, PA - $ 59,500.00 * PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION Email us at Call our Sales Staff at Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes. Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power. (outside US & Canada) Email: |
