Subject: New sharp model tmv milling machine / mill free ship

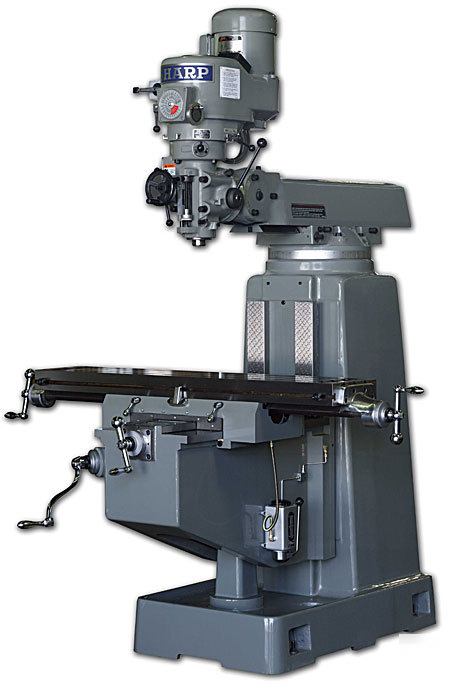

NEW SHARP MODEL TMV MILLING MACHINE / MILL
BRAND NEW SHARP MODEL TMV Milling Machine with 10 " x 50 " table. Includes 1 year manufacturer's warranty.
* To dissipate heat in the 3 HP motor driven head, a pair of high output fans is installed. This allows the machine to work demanding jobs for extended periods without damaging the motor, belts and bearings. A unique SHARP feature.
* The motor shaft and Vari Drive pulleys are dynamically balanced, then hard-chromed. This allows a vibration free milling even at high speed
* Since the Vari-speed drive system is operated by sliding the Vari Drive pulley up and down the motor shaft. The motor shaft is therefore chrome-plated, and has an oil channel that is fed by a grease fitting on the lower end for self-lubricating purpose. This ensures the sliding motion is trouble free at all times. A unique SHARP feature.
* The motor shaft that drives the pulley and the spindle is subject to a lot of lateral stress. A roller bearing is installed for the lower support of the motor shaft. A unique SHARP feature.
* Beside swiveling 90 degree side to side, the head can also swivel up and down by virtue of a knuckle joint design. The new design developed by Sharp uses 6 bolts, 3 each side, that fitted into a circular T-slot milled at the inside of the over arm and secured by nuts from the outside. It secured the head tightly and offered high accuracy in milling operations.
* A matched pair of super-precision ABEC-7 angular contact bearings supports the spindle. The quill is CNC-ground to a mirror finish, and then chromed to fit the housing. Together, they insure spindle run out of no more than 0.00002 TIR- the best in the industry.
* Hardened and ground box ways on column and saddle.
* Turcite coated slideways for better resistance to wear and retention of lube oil.
* Certified MEEHANITE castings are used for superior rigidity and better dampening of vibrations.
* Table and saddle backlash is controlled by a double-nut design that keeps the feed screw in contact with a pair of bronze nut at all times. A unique SHARP feature.
* Hardened leadscrews on table and saddle for better resistance to wear.
* The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement.
* Instead of hand scraping the top of the knee ways for oil retention, the matching underside of the saddle is hand-scraped. This extra step avoids having chips and dirt embedded in the knee ways and damages the sliding area.
Spindle gage line to table top
Head tilt; right to left (each way)
Head tilt; up-and-down (each way)
Net weight (lbs; approximately)
Hardened and ground box ways
Digital Variable Speed (DVS) Head
Power feed system on table, saddle & knee
Right angle milling attachment
Coolant system with chip pan
If you have any questions about this product contact us
