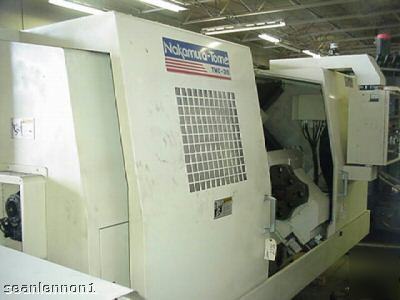

Nakamura Tome TMC35x 4-Axis CNC Turning Center With Fanuc OT Control Machine Specifications..... Bed design...45 slant Spind. nose to tailstk cent...53.l5/l6.93 Max.Min Swing over slide covers...l9.69 Upper Turret Swing over saddle...l2.99 Maximum turning diameter/length...l2.99/32.76 Dist btwn main spdl nose & turt face(max/min.)... 4l.73/7.87..... Lower turret Swing over saddle...6.50 Maximum turning dia/length...6.50/30.79 Dist btwn main spdl nose and turt face (Max/Min).. 39.76/7.87 Spindle nose...Al-8...Spindle Bore...3.l5... Collet capacity...2-l/2... Bar capacity...2.56(hole thru draw tube)... “x Axis travel (UT/LT)...9.l5/5.l2 “Z Axis travel (UT/LT)...33.86/3l.89 Spindle motor AC Va. Freq...25/30 HP 30 Min. Speed range...l0-3,500 rpm Rapid traverse rate “x Axis...472 IPM “z Axis...590 IPM Positioning accuracy (“x, “z axis)...0.0002 Repeatability (“x, “z Axis)...0.000079 Turret capacity Upper Turret...l0 Tools Lower Turret...8 Tools Tool size, Square...l.0 x l.0... Round: l-3/4... Equipped with... Chip Conveyor... Mist Collector... High Pressure Coolant...
|
