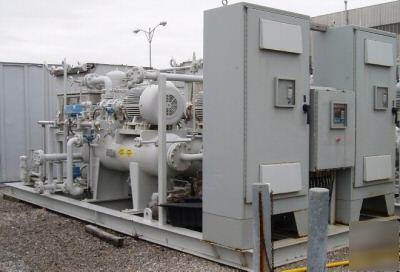

New, never been hooked up. MYCOM 125HP Rotary Screw Fuel Gas Compressor Package - Skid Mounted. Unit has tandem rotary screw compressors, each with its own 125HP motor and VFD. The drive couplings between the motors and the compressors were never even installed. Dimensions: 22' 7" x 9' 4" x 9' 6" Weight Aprroximately 25,000 lbs. Compressor (C-1 & C-2) Operating Data Qty: 2 Suction: Pressure: 20-60 PSIG Mfr: MYCOM Temperature: 95 Deg F Size: 125LM Flowrate: 988.1 lb/Hr Code: JIS Brake Power: 76.1 HP Casing Mat'l : Cast Iron RPM: 1500-3600 Rotor Mat'l: Ductile Iron Discharge: Pressure: 185.3 PSIG Motor-Compressor (CM-1 & CM-2) Qty: 2 Frequency: 60 +/- 5% MFR: TECO Westinghouse RPM: 1500-4500 **** More Information Available by Request **** |
