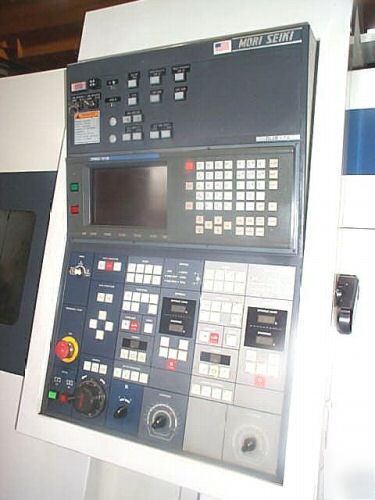

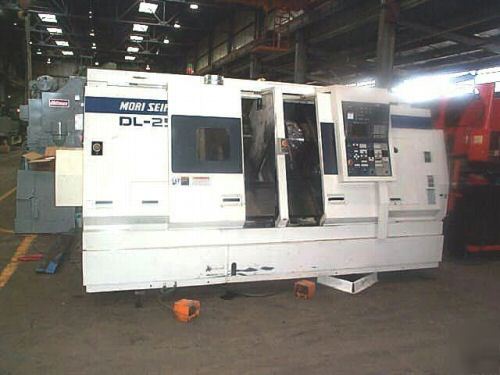

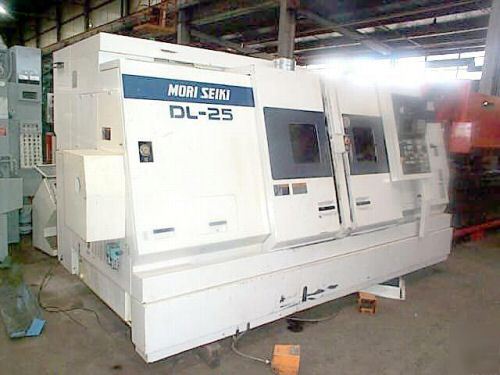

MORI SEIKI DL-25 DUAL SPINDLE, DUAL TURRET CNC TURNING CENTER Model DL-25, S/N 70, New 1998 Mori Seiki Fanuc MSC516 CNC Control, Multiple Part Program Storage, Custom Macro, Tool Life Monitor, Tool Presetters for Left and Right Turret, (2) 20 HP Opposed Spindles, (2) 12 Position Turrets, (2) Collet Chucks with 3" Capacity, Automatic Part Transfer Door Between Turning Areas, Automatic Operator Doors Left and Right, Chip Conveyor and Coolant System. NOTE: The Mori Seiki DL Series Turning Center Features Two Inline Opposing Spindles and Two Tool Turrets, each Addressing its Own Spindle. This Machine is Designed for Completing First and Second Turning Operations in One Actual Loading. A Workpiece May be Loaded to the First Spindle, Then Turned, Then Automatically and Internally Transferred to the Second Spindle for Second Operation Turning. The Machine can also be Used as a Dual Load Machine to complete two Operations at the same time. CATALOGUE SPECIFICATIONS: Max Swing Over Bed..................................... 15" Maximum Turning Diameter (each Spindle)................ 14.6" Maximum Turning Length (each Spindle).................. 14.6" Number of Turrets...................................... 2 Tool Positions......................................... 12 each turret Bar Capacity .......................................... 3" Spindle Speed Range.................................... 30-5000 RPM Spindle Horsepower..................................... 20 HP Approximate Machine Dimensions (w/o Barfeeder)......... 230" x 97" Approximate Machine Height............................. 87" Approximate Machine Weight............................. 22,500 LBS CONDITION: Appears to be in Excellent Condition! Finance Equipment For Your Business - Click Here Ph: Fax: Machinery, Tooling and Accessories used in manufacturing are usually exempt from sales tax in our state (Ohio). A sales tax exemption certificate will be required if you are a Ohio company. Equipment purchased for personal use is subject to sales tax if you are a Ohio resident. Refunds & Returns, 30 Day MDNA Guarantee The best way to contact us is via email () or via our toll-free number from anywhere in the US or Canada. From Outside the US & Canada call . Our FAX number is . We are in our office available to answer your calls and emails 9:30 AM to 5 PM Eastern Time Monday thru Friday. We sometimes work Saturdays as well, but no guarantees - call if you want to come here on a Saturday - there's a strong possibility we will be working. We are closed every Sunday and all National Holidays. Our average length of time to respond to emails is a few hours. However if an Item closes after 5:00 EST on a Friday you probably won't here from us until Monday. |
