Minster 6SS obg flywheel design press

UpUp


Subject: Minster 6SS obg flywheel design press

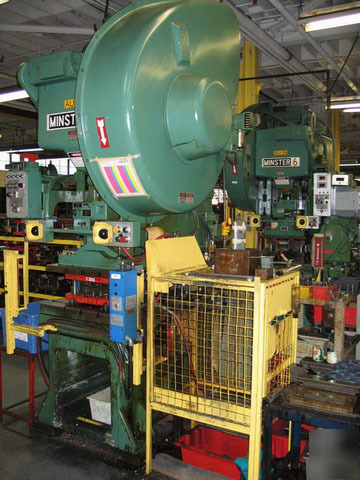

MINSTER MODEL 6SS-FB FLYWHEEL DESIGN OBG PRESS*
Capacity: 60 Ton
Stroke: 3"
Shut Height Bed to Slide (SDAU): 15-1/2"
Slide Adjustment (Power): 3"
Bed Area: 32" L-R x 21" F-B
Flanged Slide Face Area: 24" L-R x 14" F-B
Throat Depth: 11"
Opening Through Back: 15"
Distance Bed to Floor: 33"
Speed: 120 SPM
Air Clutch and Brake with Selector Controls
Arranged for Knockout L-R
Crankshaft Extension Left Side
EQUIPPED WITH:
(1) Air Counterbalance Cylinder to Slide
T-Slotted Bolster Plate (3" Thick)
T-Slotted Ram Adaptor Plate (29" x 19" x 2" Thick)
Automatic Recirculating Lubrication System
7-1/2 HP AC Main Drive Motor 575/3/60
Electrical Controls
Dual Push Button Operation
Approximate Overall Dimensions: 74" L-R x 66" F-B x 128" H
Approximate Weight: 13,000 Lbs.
Serial Number: 6SS-FB-27388 (New 1988)
P2 F.O.B. Elk Grove, IL - $ 32,500.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
