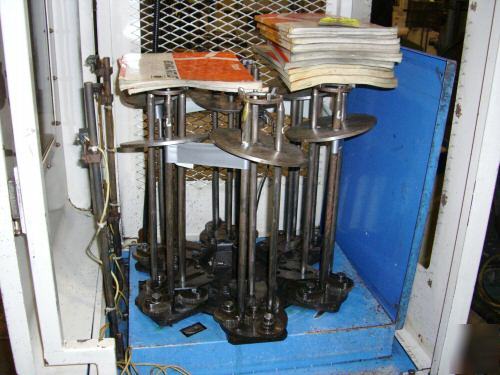

MAZAK MODEL QT-12C CNC 2-AXIS CHUCKING MACHINE WITH FLEX GL-50C ROBOT Serial No. 137114530 New 1994 Mazatrol T-Plus CNC Controls, Flex GL-50C Robot System, Magnetic Chip Conveyor, 8" 3-Jaw Hydraulic Chuck, Tool Eye, Hand Held Teaching Box For The Flex GL-50C Robot. Maximum Swing 15.75" (400mm) Maximum Machining Diameter 8.25" (210mm) Maximum Machining Length (Chuck Work) 10.78" (274mm) Maximum Supported Weight (Chuck Work) 110 Lbs (50KG) X-Axis 5.12IPM (130mm/min) Z-Axis 11.42 IPM (290mm/min) Rapid Traverse Rate 98FPM (30m/min) Through Hole Diameter of Spindle 2.44" (62mm) Spindle Speed Range 40-4000 RPM Motor Horsepower 10/7.5HP (7.5/5.5KW) Turret Type Octagonal Drum No. Positions on Turret 8 Approx. Dimensions 103"LR x 96"FB x 108"H Approx Weight (Machine & Chip Conv.) 6,200 Lbs Aprrox Weight (Robot & Controller) 7,500 Lbs |
