Subject: Magnum digitale sewage lift station control
The Digitale Lift Station Control Package can economically transform your old lift station into a modern self diagnostic station with an electro-mechanical backup system. The system is designed around the Micrologix 1200 PLC.
A touchscreen operator interface allows easy access to setpoints, alarm history, level history, and operating status.
o The level at which both pumps stop running.
o The level at which the lead pump starts.
o The level at which the second pump starts running.
o Sensor offset or zero value.
o Sensor gain value used to convert signal value to feet.
o Turn pump alternator on or off.
o Select between sensor and float mode of operation.
Front panel mounted selector switches and pushbutton allow the user to quickly control the station.
o Hand- Pump 1 runs with all controls bypassed.
o Off- Pump 1 does not run under any circumstance.
o Auto- PLC controls pump. Pump will also run in electro-mechanical bypass mode if the high level alarm float is reached.
o Hand- Pump 2 runs with all controls bypassed.
o Off- Pump 2 does not run under any circumstance.
o Auto- PLC controls pump. Pump will also run in electro-mechanical bypass mode if the high level alarm float is reached.
Standard alarm messages notify the user of the following alarm conditions:
o Pump Circuit Breaker Tripped

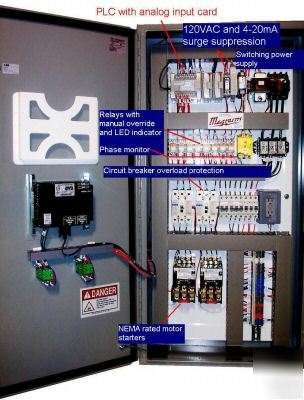

PLC with analog input card and 2 communication ports
Pressure Transducer with 40 ft cable
NEMA 12 enclosure (NEMA 4 outdoor available)
Installation and operation manual
CD with program and literature soft copies
Magnum Electric specializes in controls and installations for water and wastewater systems. We build controls ranging from fractional horsepower single pump residential to 100HP 3 pump municipal. We can handle all your water pumping needs! Learn more at www.magnumelectric.biz
