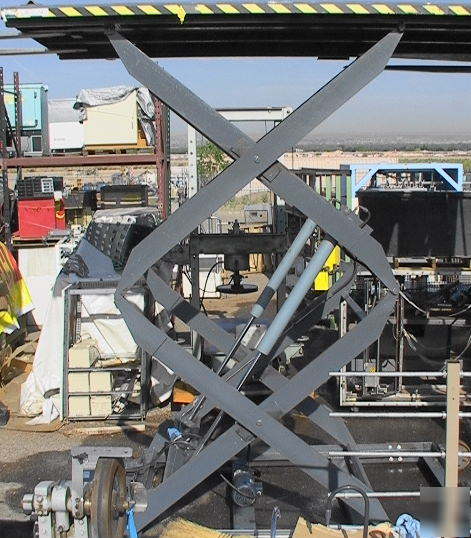

HUGE Aaron-Bradley Hydraulic Double Scissors Lift Table Platform with power travel 11'x6'x11'? DSL-40 27N2. Need an "instant" freight elevator? This is the most impressive scissors lift table platform we have had to date. The most impressive thing is that it is double action so the vertical travel is about 11 feet!!! In these images we are lifting the unit with a pair of forklifts as the hydraulic reservoir had been broken off-probably in transport. We are in the process of replacing the reservoir. Note that this whole unit is designed to move on rails. There is an electric gear motor in the image below that powers the axle on one end. There are flat steel wheels on one side and grooved wheels on the other. The grooved wheels are designed to travel on the back of angle-iron to keep the unit on track. (We do have the stainless steel angle rail but not the flat.) Click the following link for the factory website-not specific to this model. 'DSL' HYDRAULIC DOUBLE-SCISSOR LIFT TABLE The image above is of the placard on the gear motor that moves the unit on rails. The image below shows the placard on the hydraulic pump motor. Note that it is 2 horse 3-phase. The image above shows the table about 138 inches off the ground-as high as our forklift would go. In the image below you can see there is still more travel so we think it would go up another foot or two meaning the amount of vertical travel is probably 132 inches or 11 feet. The wheels are about 5 feet wide stance and the distance between axles is about 9 feet. The images here show the hydraulic pump. Note that the reservoir that belongs over the end of the pump is missing in these images as it is getting replaced. The height from the ground to the deck is about 22 inches. The deck is about 11 feet long by 5 feet wide. There are stainless steel flat and angle rails currently bolted to the top of the deck (cross-wise) so that a similar mechanism could travel across the deck. Other similar items may be available listed separately or on request. Might be just what you need for your instant freight elevator or other really large high-lift platform table application. Condition looks generally very good with hardly any use but a touch of weathering. Hydraulic reservoir tank being replaced so will be full functional when you get it. Click cavlon99 all to see items from the past 30 days-might be something you need that did not sell. Click here to check for last minute updates and cavlon99 news Listing description is correct to the best of our knowledge This item may be subject to government export/import restrictions. Click the following link for rules regarding sale/resale of US government property Sale of Government Property. |
