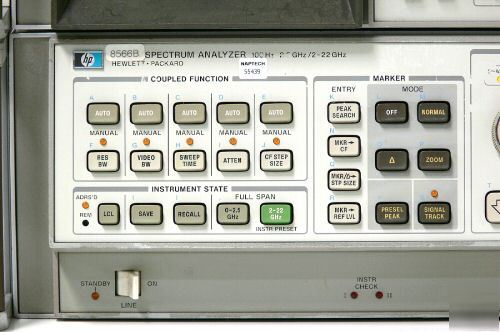

HP Agilent 8566A/B Spectrum Analyzer The 8566A/B is a versatile, high-performance, 100 Hz to 22 GHz, microwave spectrum analyzer for bench and ATE use. The exceptional frequency stability of the 8566A/B permits measurements with a 10 Hz bandwidth. This narrow resolution bandwidth yields noise levels as low as -135 dBm. Excellent frequency stability, sensitivity, and frequency reference accuracy combine to allow very accurate measurement of small signals in the presence of large ones. Multiple traces can be displayed to measure residual FM or drift, or to conduct real-time surveillance over a wide frequency range. Analyzer control settings can be saved in non-volatile memory. Complex measurement routines can be created on an external controller, stored in the analyzer's user RAM, and executed using a single custom softkey. * 100 Hz to 22 GHz, to 325 GHz with external mixers * 10 Hz resolution bandwidth * Amplitude range -134 to +30 dBm * Exceptional frequency stability and sensitivity * Up to four trace markers with amplitude and frequency readout * Stores traces, instrument states and custom downloadable programs (DLPs) * 100, 120/200, 220, 240 Vac; 50-60 Hz operation * Weight: 112 lb; Size: 425 mm (16.8 in)W x 279 mm (11.0 in)H x 599 mm (23.6 in)D Accessories included: Copies of Operator's and Service Manuals (Vol. 1 on CD), Handbook, Installation Guide, Quick Reference Guide, Specifications, rear interconnect cables, 50 ohm load. Front test cable in pictures not included. More about the instrument: It consist of two parts, manufactured in 1978-display and 1985-analyzer. Serial numbers: 1838A00410 and 2525A00897. As you can see in the pictures, they are in fair cosmetic condition considering their age with few signs of wear and tear. All photos on this page are of the actual item offered here Guaranteed to be clean and fully operational, with 14-day right of return About us: For 15 years Naptech has sold many thousands of pieces of test equipment to thousands of companies including to Government Contractors. We have five full-time engineers to ensure every instrument we supply performs reliably and to full manufacturer's specs. Naptech has a reputation for providing quality equipment at a reasonable price Thanks for viewing our listing Want to live a worthwhile life? Consider what will be written for your epitaph Finance Equipment For Your Business - Click Here |
