Subject: Hp 4395A /1D5/1D6 network/spectrum/impedance analyzer

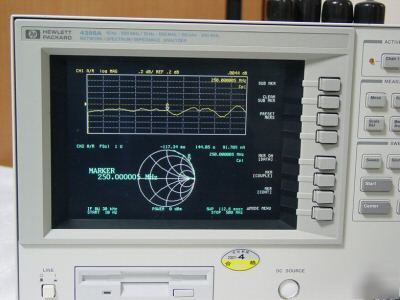

HP 4395A /1D5/1D6 Network/Spectrum/Impedance Analyzer Network:10Hz-500MHz res1mHz acc0.13ppm Power:-50-+15dBm res0.1dB acc1dB Receiver:10Hz-500MHz NoiseLevel-115dBm+f/100MHz IFBW:2,10,30,100,300,1K,3K,10K,30KHz
Spectrum:10Hz-500MHz RBW:1Hz-1MHz 1-3-10step Select:60dB/3dB SSBnoise:-110dBc/Hz(110KHz) NoiseLevel:-145+f/100MHz dBm HP-IB ColorLCD 3.5FDD 235H425W553D 21KgOPT1D5:HistabilityOSC OPT1D6:TimeGatedSpectrum
