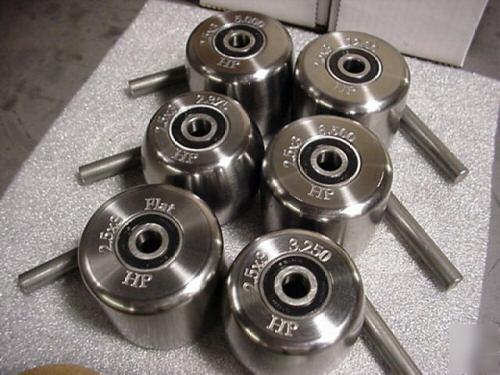

The "Model 24" by Hoosier Pattern Inc. What Makes this Machine So Good? Our Side Plates are Cut from 1/4" Plate Making This a Superior Manufactured English Wheel with Total Adjustability and Optional MetalShaping Attachments. FREE BLACK OXIDE ON ALL TOOLING COMPONENTS. No Need to paint this one but if you want to Paint can be applied over the Black Oxide This Machine Comes to you Complete with 7 Wheels This is Our Largest Machine reaching 24 Inches Deep into a Panel. This Machine Stands 38 Inches Tall and 35 Inches Deep. We have many Attachments for this Machine such as; Hand Driven Tipping Wheels, Free Spinning Tipping Wheels, Urethane Upper Wheels used with UHMW Forming Anvils, Urethane Lower Anvils in both 2x3 and 3x3. Some of the Attachments are Shown in the Pictures. * Bolt Together Machine 80% Assembled * Extremely Rigid Design Keeps Contacts Aligned * Side Plates Cut from 1/4" Plate * Crank the Pressure Up and you have a Superior Streching Machine * 360 Degree Rotation on Both Top and Bottom Yokes * Leveling Screws in Lower Yoke to set Perfect Alignment * Complete Set of the Highest Quality Wheels made * Benchtop Design Saves Floorspace * Anvil Storage Slots are Cut in the Top of the Frame * Can be Welded after Assembly but not Needed I Guarantee My Machines Performance. I've used more English Wheels than most Metalshapers, Fabricated and Purchased, and I can say These Machines are Hands Down the Worlds Finest. Here is what comes with the Machine. * Precision Machined 3" x 9" Custom Billet Hardened Upper Wheel 52-54Hrc * Complete Precision Machined 6 piece set of Our Contact Lower 2½" x 3" Anvils. Sizes are: 2.375, 3.25, 5.00, 8.5, 12, and Flat * 6 Axles and spacers used to secure the Anvils in Storage Area * Precision Machined Quick Release Upper 2 Inch Yoke * Precision Machined Upper Adjuster with Brass Tipped Adjusting Set Screws * Solid Steel Ram inside Adjuster with Hardened Thread Insert * Precision Machined Lower 2½ Inch Yoke with 4 Ball Nose Leveling Screws * Precision Machined Lower Tool Arm Machined from Solid Steel * Precision Cut Frame and Mounting Plates * No Paint, you Make it the Color you want(THIS ONE IS BLACK OXIDED) * All the Hardware to Assemble This Machine is nearly Assembled leaving you with a minimal amount to do. Here is what is left to do.... * The Lower Arm needs to be Mounted on(Eight Bolts and washers), * The front and top plate removed from the Adjuster to reveal the Mounting holes, then Attach the three Screws Included through the Adjusters Back Plate and Reassemble the Adjuster. * Attach the Machine Mounts to the Base of the Frame * Bolt on Upper and Lower Yokes * Lasty, Align the Lower Yoke to the Top Wheel using the Flat Lower Anvil in the Bottom Yoke by adjusting the 4 Leveling Screws in the Lower Yoke. This is crucial to creating Beautiful Panels and utilizing the Contacts on the Lower Anvils. When Properly Aligned you will see no Light between the Wheels. If you would like to have the Lower Anvils Hardened we Charge an Additional $150.00 for them, this covers Heat Treat Cost and Finish Machining and Polishing Cost. If you have questions regarding anything to do with this Machine please don’t hesitate to ask, e-mail or call me Toll Free at ask for Joe © Copyright 1999 - 2007, All Rights Reserved |
