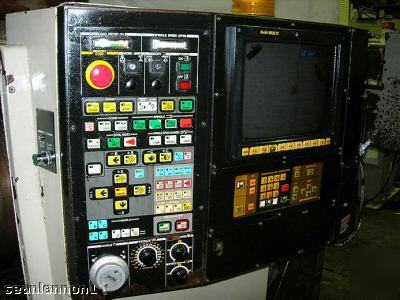

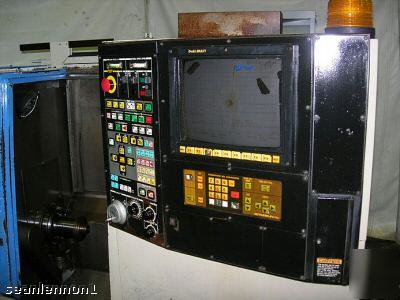

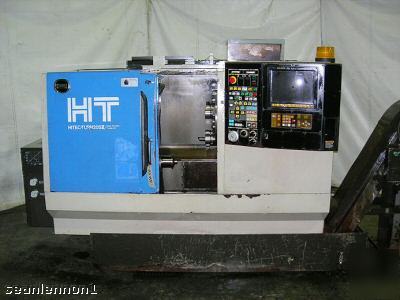

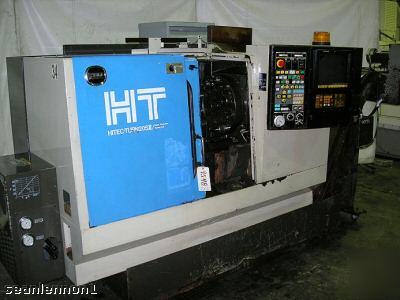

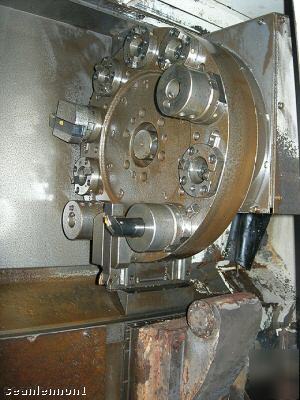

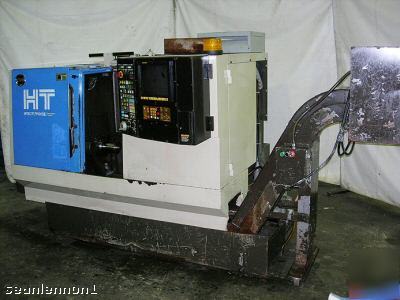

Specifications... Capacity: Swing....15" (380mm) Chuck size... 8" (210mm) Max. turning dia... 8" (210mm) Max. shaft length... 15" (280mm) Bar capacity... 2" (51mm) Travel: X Axis...7.9" (200mm) Z Axis...15.7" (400mm) Spindle: Spindle speed... 30-5000 RPM Spindle speed range... Stepless Spindle nose... A2-6 Hole through spindle... 2.3" (59mm) Bearing dia. of spindle...3.5" (90mm) Turret head: No. of tool position... 12 Tool size:OD tool... 1"/1"/.75" 25mm/25mm/20mm Tool size: ID tool... 1.25"/1.25"/1"32mm/32mm/25mm Turret index time... 0.1/face sec. Feed: Rapid traverse X Axis... 787 IPM/20m/min. Rapid traverse Z Axis... 945 IPM/24m/min. Cutting feed... 0.0001-20.0"/rev. 0.01-50mm/rev. Jog feed...0-80 IPM/0-2000mm/min. Tailstock: Stroke...15.7"/400mm Spindle inside taper... MT5 Motors: Spindle motor... 50% ED 15 HP/11 AC kw Feed motor X Axis... 1.4 HP/1.03 AC kw Feed motor Z Axis... 1.4 HP/1.03 AC kw Coolant unit...25 HP/0.18 kw Power capacity...18 KVA Weight...9,020 LBS Equipped With... Hitachi Seiki conversational CNC control (LX3 Yasnac) Q Setter.... Coolant unit.... Tailstock..... Spindle load meter..... Spindle speed meter... Spindle speed override... Splash guard cover...
|
