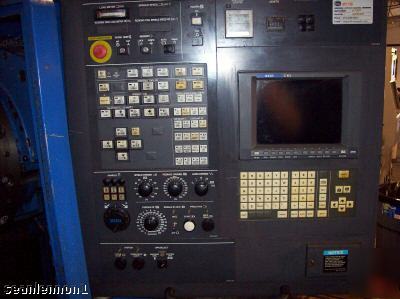

SPECIFICATIONS: SWING OVER BED...17.7" MAXIMUM TURNING DIAMETER...13.38" MAXIMUM TURNING LENGTH...12" X AXIS TRAVEL...8.46" Z AXIS TRAVEL...12" TURRET CAPACITY...12 STATION TURRET INDEX TIME (1 STATION)...0.1 SECONDS RAPID TRAVERSE RATE X AXIS...1181 IPM RAPID TRAVERSE RATE Z AXIS...1181 IPM SPINDLE NOSE...A2-6 SPINDLE BORE...2.44" MAXIMUM BAR CAPACITY...2.0" SPINDLE SPEED...30 - 5,000 RPM SPINDLE MOTOR...20 HP MACHINE DIMENSIONS (APPOX)...139" x 82" x 80" MACHINE WEIGHT...10,500 LBS ROTARY TOOLS...12 STATION ROTARY SPEEDS...30-5000 RPM... FULL C-AXIS EQUIPPED WITH... FANUC/SEICOS CNC CONTROL WITH 10" LCD... RS-232C PORT INTERFACE FOR DNC OPERATION... 8" 3 - JAW HYDRAULIC CHUCK... TOOL EYE (AUTOMATIC TOOL PRESETTING ARM)... RIGHT DISCHARGE LIFT-UP TYPE CHIP CONVEYOR... STANDARD COOLANT SYSTEM WITH TANK & PUMP... ...MANUALS... TOOLING..... DUAL GRIPPER GANTRY LOADER SYSTEM
|
