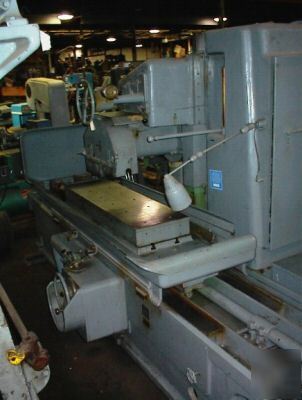

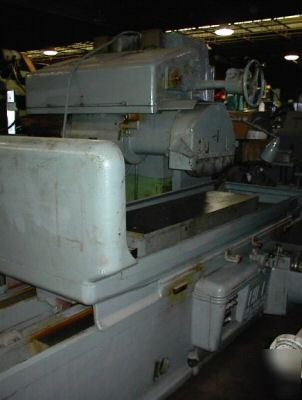

Chuck size 18.5" x 60" W/ Electro matic Rectofier to power chuck. 230v D.C. / 460v A.C. 1500 watts 50/60 cycle. Spindle Motor 15hp. 220/440v 3ph. 1100 rpm Grinding wheel 18" x 2" & 18" under wheel. Incremental down feed & power rapid up / down on head. Has cross feed adjustable dogs. One shot lube system on column Hyd. truing & built in coolant system w/ 75 gal. tank. Hyd. pump motor 7.5hp. 220/440v 3ph. approximate dim. 15'L x 9' front to back x 9' H. Spindle motor push button on/off Directional control pilot valve handle Hand wheel with micrometer reading for raising and lowering wheel head manualy Hydraulic cross feed trip valve Hand wheel for manual cross feed Hydraulic needle valve open for continuous cross feed Hydraulic valve turn off for manual cross feed Table travel handle run-stop-inch operation manual & blue prints. |
