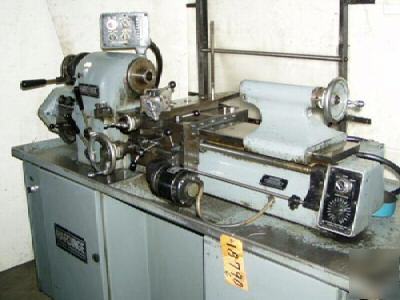

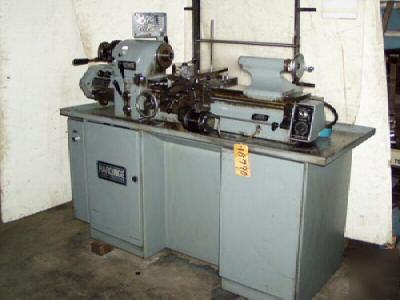

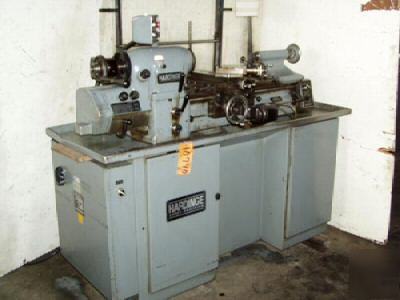

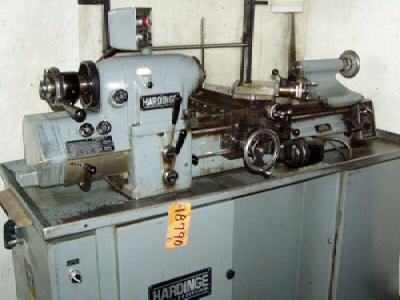

No. HLV-EM, HARDINGE, 11" x 18", English/Metric, Collet Closer, 1983 Our stock number: 18790 MODEL...................................HLV-EM SERIAL NUMBER...........................HLV-H-10369-T Year: 1983 Actual Swing Over Bed...................11" Swing Over Carriage.....................9" Swing Over Cross Slide..................6" Distance Between Centers................18" Hole Through Spindle....................1-1/4" Spindle Capacity, Round 5C Collets......1-1/16" Spindle Nose............................Hardinge Tapered Variable Spindle Speeds.................125 to 3000 RPM Compound Slide Travel...................3" Carriage Power Feed.....................5/16" to 7" Per Minute Cross Slide Power Feed..................3/16" to 4" Per Minute Tailstock Spindle Diameter..............1-3/8" Tailstock Spindle Travel................3-3/4" Tailstock Spindle Taper.................No. 2 Morse Leadscrew Diameter......................1" - 8 Threads Thread Changes In Gear Box..............72 English Threads........................11 to 108 Metric Threads......................... .275 to 2.7 Two-Speed Motor In Base, 460/3/60 Only Independent Electric Variable Power Feed Drive For Electric Panel With Start/Stop Buttons, Forward/Reverse Faster/Slower Push Buttons, Brake Off Switch, Coolant Carriage Feed 0-100 Selector Dial With Left/Stop/Right Switch Solid Hardened and Ground Steel Dovetail Bed Ways 5C Lever Operated Collet Closer Approximate Weight......................1700 Lbs. All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS. All items are offered locally and could be sold previous to end of store listing. |
