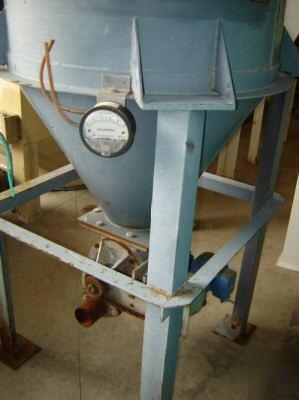

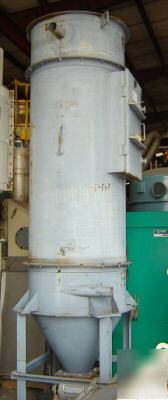

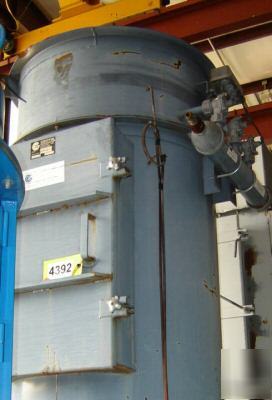

APPROX 150 SQUARE F00T GRIFFIN CARBON STEEL DUST COLLECTOR MANUFACTURED BY GRIFFIN ENVIRONMENTAL COMPANY, . MODEL CF10F. SHOP ORDER # 24095. 33 DIAMETER SHELL. BAG LENGTH APPROX 72. 3 PIPE BLOW PIPE HEADER SYSTEM. UNIT HAS DISCHARGE ROTARY VALVE MOUNTED ON AN OUTLET FLANGE. VALVE HAS A 1/2 HP 230/460 VOLT MOTOR WITH CHAIN DRIVE & BLOW THROUGH DESIGN. 3 O.D. PLAIN END PIPE FITTINGS. COLLECTOR HAS 3 O.D. PLAIN END DIRTY AIR INLET AND SIDE ACCESS DOOR IS 20 X 32. OVERALL HEIGHT IS APPROX 138. UNIT IS COMPLETE WITH GOYEN SOLENOID VALVE BOX BUT NO TIMER. REBUILDING AVAILABLE AT ADDITIONAL COST FOR ADDITIONAL ITEMS VISIT J&M INDUSTRIAL AT |
