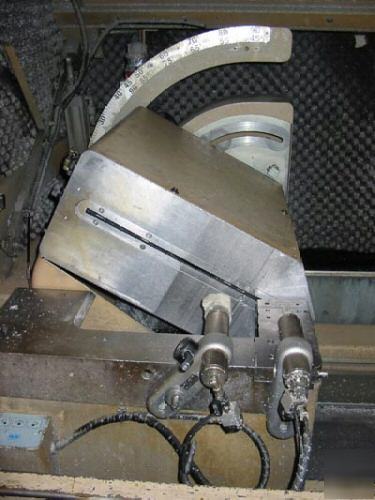

Used FOM CNC Double Head Saw Model BLITZ 50CZC with Sound and Safety Enclosure (1998) Cut Dimensions: at 90º at 45º at 20º 5-½ w x 11-⅜h 5-½w x 7-¼h 5-½w x 3-½h Minimum Cut Length: 9 between heads at 90º Motors: Direct Drive Blade Motors 3 HP each, 2800 rpm Electrics 460 volt, 3 phase, 60 hz Head Tilt: 45º inward, 20º outward and intermediate degrees, Right Head: Automatic positioning, can also position manual Positioning speed 13/second Machine Dimensions:(Approx) 235 long x 72 wide x 72 high Machine Weight: 6,000 lbs. (Approx) · Compact sliding control panel and keyboard · Automatic positioning of mobile head · 100 profile heights filed for automatic compensation of dimension set for 45º · Piece counter with automatic shut off · Readout of intermediate cutting angles · Automatic setting of cutting angles · Conveyor belt for automatic collection of chips, synchronized to the operation of the saw heads. · Complete enclosure of sawing unit for noise reduction, total collection of chips and fumes, exceeds OSHA standards · Pneumatic clamping of work piece Be sure to add me to your favorites list! Be sure to add us to your favorite sellers list for daily additions!!! For more specs on this machine and others please visit 6% Michigan sales tax where applicable. It is the user’s responsibility to provide proper safety devices and equipment to safeguard the operator from harm for any particular use, operation or set up, and to safeguard adequately the machine or machines to conform to all Federal, State and Local Government Safety Standards, and all Industry Safety Standards. |
