Subject: Filter press 1000MM recessed poly plates

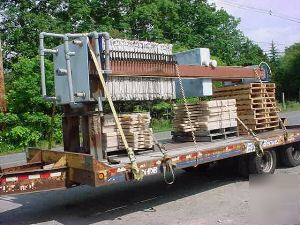

Stk. no. C-1949 1,000 mm FILTER PRESS
Model/serial no. Ram marked Hydro-Line
Manufacturer (NO PLATE)
Dimensions 36" sq. plates,o/a 43" x 19' x 75" w/o piping
Construction/configuration C/s frame, poly plates Recessed,non-gasketed ctr feed
PSI:Jkt:in Approx. 15 to 25 cu.ft. capacity
Inlets/outlets 3" center feed, (4) 2" corner outlets
General data (27) plates in press with room for an additional 15. 2 3/16" thick
Drive (20) extra plates to be included.
