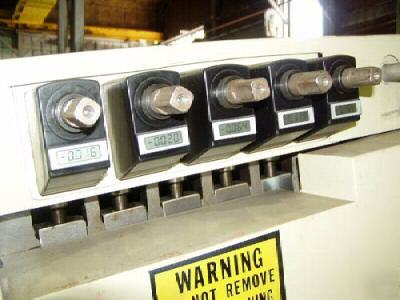

12" x .090" FEED LEASE, FLPS-1-3/4-12-11, 11 Rolls x 1.75" Dia., Loop, 1999 Our stock number: 19443 MODEL..................................FLPS-1-3/4-12-11 SERIAL NUMBER..........................4510 Year: 1999 Maximum Width Capacity.................12" Thickness Capacity @ 12"............... .090" Thickness Capacity @ 6"................ .125" Minimum Thickness Capacity............. .010" Number of Straightening Rolls..........11 Diameter Of Straightening Rolls........1-3/4" 5 HP Drive Motor, 1745 RPM 230/460/60/3 Waddington Sona-Trol Ultrasonic Loop Control Pendant Control Forward/Reverse Jog Pinch Rolls Located On Entry and Exit Sides (Manually Adjusted) Entrance and Exit Vertical Edge Guides 2005 Replacement Cost: $46,765.00 All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS. All items are offered locally and could be sold previous to end of store listing. |
