Subject: Fadal model VMC2016L cnc vertical machining center
FADAL MODEL VMC2016L CNC VERTICAL MACHINING CENTER

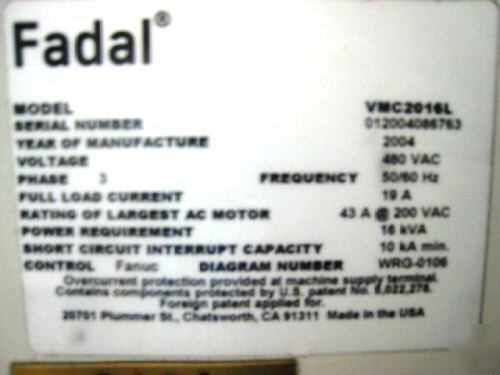

Serial No. 012004086763 New 2004
Fanuc 18i-MB5 CNC Control, RS-232 Port, Multiple Part Program Storage,Self Diagnostics, 21 Station Automatic Tool Changer, 10" 3-Jaw Pneumatic,Chuck Mounted on Table, Thru-Spindle Coolant, Graphics, Rigid Tapping,Hand Held Pendent Control with Manual Pulse Generator, Axis Error Compensation, Full Enclosure, Coolant System and Chip Conveyor.
Table Working Surface 29.5" x 16"
Table Load Capacity 1,000 LBS
Longitudinal Travel (X-Axis) 22"
Cross Travel (Y-Axis) 16"
Vertical Travel (Z-Axis) 20"
Spindle Nose to Table 4" - 24"
Rapid Traverse Rate (X & Y-Axes) 700 IPM
Rapid Traverse Rate (Z-Axis) 600 IPM
Tool Storage Capacity 21
Spindle Horsepower 15 HP
Spindle Speeds Range 10- 7,500 RPM Spindle Taper #40 Cat
Electrics 460/3/60
Approximate Machine Dimensions 87" x 106"
Approximate Machine Height 95"
Approximate Machine Weight........................ 8,000 LBS
