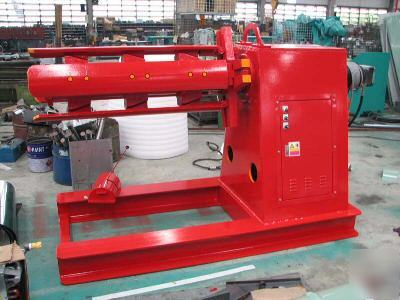

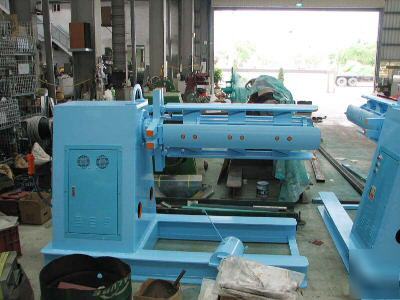

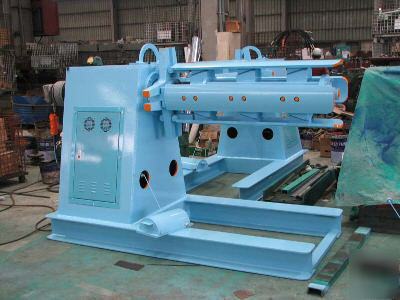

New 16,000 lb decoiler that can feed material up to 48 inches wide and up to 120 feet per minute by use of an electronic sensor. (1) Horsepower : 5HP (2) Capacity of the uncoiler : 5 tons (3) Expansion of segment : Hydraulic (4) Rotation of segment : Hydraulic (5) Number of segments : 4 (6) Range of segment expansion : 18 inches to 20.25 inches 460 ~ 515mm (7) Inner diameter of coil : 20 inches 508mm (8) Maximum outer diameter of coil : 71 inches 1.8 M (9) Maximum width of coil : 51 inches 1300mm (10)Height of center of the mandrel : 47 inches 1.2 M |
