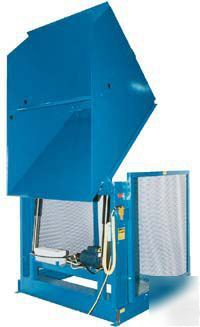

Electronic Hydraulic Box Dumper Note: Can be customized for Gaylord box heights (only $199) Designed for controlled dumping of material from boxes, crates and other types of containers. Lowered height of only 1?2" allows for pallet truck loading and unloading. Retaining bar for use with 24", 30" and 36" high containers (contact factory for other hold-down bar heights). Maximum dump angle is 45°. Chute reach is 10°. Internal 2HP power unit and hand held control standard. Protective mesh side screens included. Heavy-duty welded steel construction. Painted blue finish. * Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life. * Voltage - 208-230/460 Volt, 60 cycle, 3 phase. * Cast iron pump with integral valving including pressure relief valve, check valve, down solenoid valve and pressure compensated flow control valve. * 24 Volt, fused control circuit to protect operator. * Hydraulic Actuators have internal brass velocity fuse w/stainless steel spring for emergency lockup. Options on power, voltage and phase: (no extra cost) 1) Power: AC, DC (12V), or AIR/OIL2) Motor Voltage: 115, 208, 230, or 4603) Motor Phase: single or three Optional Foot Control, model HBD-FC 5) Finance your purchase: request application by sending request to or call . 2320 Sans Souci, Aurora, IL 60506 Incorporated In The State Of Illinois Questions: Just send an email to or click on "Ask seller a question." Be sure to add us to your favorites list! |
