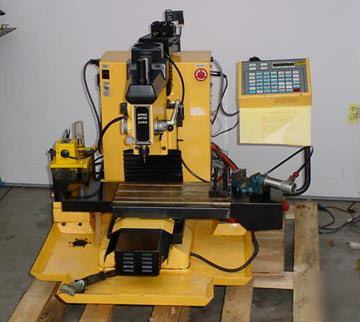

DYNA MYTE 2400 CNC VERTICAL BENCH TOP MILLING MACHINE THE DYNA MYTE MILLING MACHINE COMES WITH A CHIBA TYPE SMA3 INCLUDES ARO FLUID POWER MODEL A211SS ALSO DYNA MYTE 2400C CONTROL PANEL MODEL 2400c/3E18 INCLUDES AIR VISE MODEL D-5185-A THIS POWERS UP AND RUNS STRONG! Max. distance spindle nose to table 9.1 inch, Spindle stroke 1.5 inch, Quill diameter 1.4 inch, Spindle speed 0-10 000rpm continously variable, X-axis travel 6.2 inch, Y-axis travel 5 inch, Z-axis travel 4 inch, Work table area 13 x 6 inch, Spindle motor 0.5hp, Overall size WxDxH 23.7 x 21.5 x 21.5 inch, Net weight 250 pounds, Resolution all axes 0.0001", Repeatability 0.0005 inch * Anti backlash screw and nut. * Dyna conversational programming (900 lines memory) or drip feed, unlimited length. * Easy to modify if you like to use G-Codes (digital, step and direction to drive the motors). * LCD display with self diagnostics function. * Many great canned cycle and macros. * RS-232 for upload and download via standard null-modem cable using "Terminal". * Auxiliary input/output for various function like closing and opening vise * Adjustable head height (manual) to clear large pieces. X-Axis Travel: 6.2" (157 mm) Rapid Traverse: 30 IPM (x, y, z) Spindle Speed (continuously adjustable): 0 to 10,000 RPM Spindle Collet Capacity: 1.16" - 3/8" (1 mm - 10 mm) Spindle Stroke: 1.5" (38 mm) Quill Diameter: 1.4" (36 mm) Max Distance Spindle Nose toTable: 9.1" (232 mm) Spindle Motor: 1/2 HP Universal AC type Resolution: All axes 0.0001" (0.0025 mm) Repeatability: 0.0005" (0.01 mm) Position Accuracy: 0.012 in/total (0.03 mm/total) Electrical: 120 VAC, Single Phase Overall Dimensions: 27" x 35" x 22" tall Summary of My Selling Policies The best way to contact me is by email and if its a weekend you will hear from me Mon morning.We are closed on most weekends & all Holidays.If I do not answer your first email be patient I may be out of town, or sick, or just unable to get into my mail.You never know so be patient.thank you,Carole All items can be picked up we are located in Casselberry Florida 32707.Please email for an appointment. Read my policies on my SquareTrade Seal |
