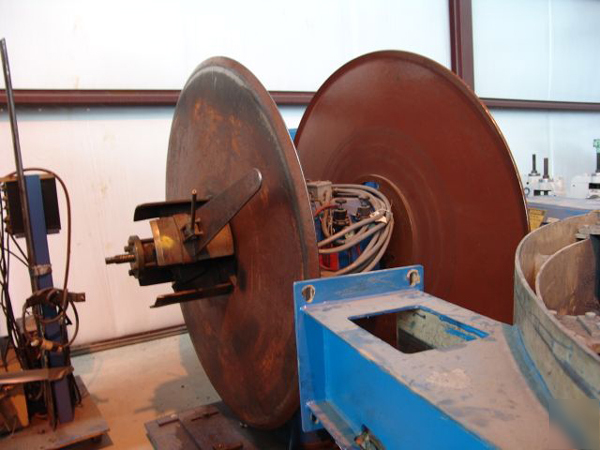

DREISTERN MODEL TK636ED16 TUBE MILL LINE* Maximum Tube Diameter: 2" Minimum Tube Diameter: .500" Maximum Wall Thickness: .062" Minimum Wall Thickness: .024" Driven Spindle Diameter: 1.57" Horizontal Centers: 13" Maximum Mill Speed: 360 FPM Left To Right Flow ENTRY EQUIPMENT: KENT - Double End Reel (6,000 Lbs), KENT Shear/Butt Welder MILLER Welder, Horizontal Strip Accumulator w/DYNAPAR Digital Fill Controls, KENT H050 H-Coil FORMING MILL: (1) Entry Guide Table; (3) Driven Breakdown Stands (5) Idle Side Roll Units; (3) Driven Fin Stands WELDING STATION: (1) AEG - 110 KW High Frequency Solid State Welder Scarfing Stand, Tandem Tools, Flood Type Coolant SIZING MILL: (3) Driven Sizing Stands; (3) Idle Side Roll Units (1) 4-Roll Straightener Unit (Turkshead) CUT OFF: 4-Head Hydraulic Automatic Cut-Off w/Length Control MILL DRIVE: (2) 30 HP DC Main Drive Motors Approximate Overall Dimensions: Approximate Weight: Serial Number: 95138 (New 1995) P2 F.O.B. PERRYSBURG, OH - $325,000.00 * PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION Email us at Call our Sales Staff at Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes. Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power. (US & Canada) (outside US & Canada) |
