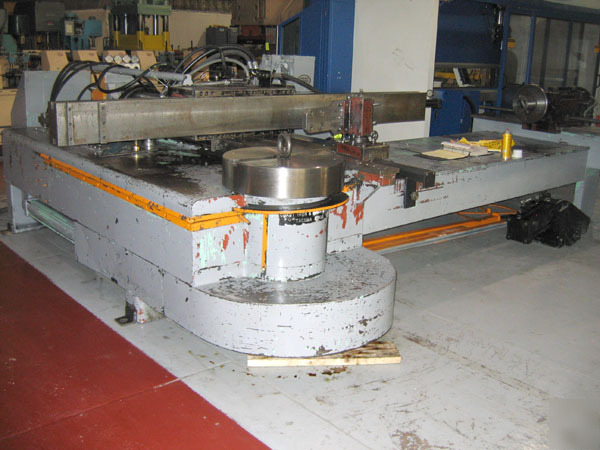

COAST MODEL 6RD HYDRAULIC ROTARY TUBE BENDER* Bending Capacity: 8" O.D. x .083" (Carbon Steel Tube) Maximum Tube Length (over Mandrel): 9' Maximum Bend Angle: 108 Degree Counter-Clockwise Rotation Bending Speed: Variable Bending Torque: 92,240 Ft. Lbs. @ 1500 PSI Maximum Hydraulic Pressure: 2400 PSI EQUIPPED WITH: Mandrel Table w/Mandrel Extractor Cylinder Clamp and Pressure Die Holder Hydraulic Power Unit 30 HP AC Main Drive (Pump) Motor 460/3/60 Electrical Control Console Approximate Overall Dimensions: 152" L-R x 65" F-B x 60" H Approximate Weight: 15,000 Lbs.(TANK: 72"X 65"X 60"H) (TABLE: 155"X 66"X 54'H) Serial Number: 6RD-85-250 (New 1985) P2 F.O.B. Elk Grove, IL - $ 74,500.00 * PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION Email us at Call our Sales Staff at Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes. Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power. (outside US & Canada) Email: |
