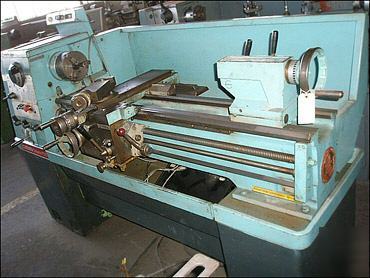

Swing Over Bed: 13" Swing Over Cross Slide: 8.25" Center Distance: 40" Hole thru Spindle: 1 21/32" Spindle Nose: D1-4 Camlock Spindle Center: #3MT Spindle Speeds: Infinitely Variable-( MOTOR DRIVEN ) Speeds 3-Ranges: 20-120, 90–540, & 500–3100 RPM Leadscrew Diameter: 1 1/8 Longitudinal Feeds: (45)0.001 - 0.040" Cross Slide Travel: 8 ¼ Tail Stock Quill Diameter: 1 11/16" Tail Stock Travel: 4 ¼ Tail Stock Morse Taper: #3MT Motor: 5 HP, 3 Ph 220/440 Volts Dimensions: 63" L x 32" W x 47-1/2" H * Variable Speed Spindle Drive Norman Machine Tool Ltd. Supplying Quality Machinery and Tooling for Over 55 Years!! Member: Machinery Dealers National Association Hours of Operation: Monday - Thursday 9 a.m. to 5 p.m. - Friday - 9 a.m. to 4 p.m. 1311 South Ponca Street - Baltimore, Maryland 21224 Phone or - Fax |
