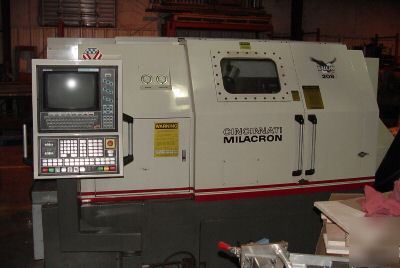

MAXIMUM SWING OVER BED .......................... 20" MAXIMUM SWING OVER CROSS SLIDE .................. 12" MAXIMUM TURNING DIAMETER ........................ 10.5" MAXIMUM DISTANCE BETWEEN CENTERS ................ 23.5" X AXIS TURRET TRAVEL ............................ 5.91" Z AXIS TURRET TRAVEL ............................ 23.6" NUMBER OF TURRET STATIONS ....................... 12 POSITION SPINDLE SPEEDS .................................. 45 - 4500 RPM SPINDLE BORE DIAMETER ........................... 2.44" TAILSTOCK BASE TRAVEL ........................... 20.47" TAILSTOCK QUILL STROKE .......................... 3.94" MACHINE WEIGHT, APPROX .......................... 11,500 LBS. ACRAMATIC MODEL 850SX CNC CONTROL MISC. BOOKS AND ELECTRICAL PRINTS |
