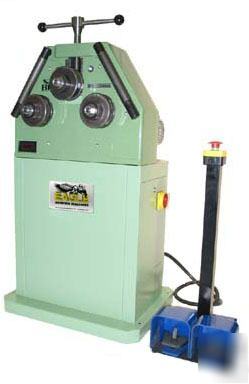

Includes stand with manual adjustment with LED read out, foot pedals, 220v 1ph and universal rolls, 18 pieces and Calibrating Spacers The Model CP30P is probably the most used Section Bender in the world. and is equipped with LED digital displays to monitor the bending roll and aid in precise positioning for greater accuracy in rolling. The unit uses the Powerful Pyramid Geometry with lower rolls driven and fixed in position and the top roll adjustable to obtain different bending diameters. Universal tooling supplied in 18 components permit bending of most all standard sections. * LED Digital Display to monitor top roll position * Hardened Universal Rolls, New Design more versatile * 3 Way Adjustable Lateral Guides * Heavy Duty Cast Steel Foot Pedals with E-stop (on "P" Models) * Disappearing Flush Faced Design * Automatic Top Roll Locking Pin for EASY tooling change out * Higher Rolling Speed & Heavier Machine Weights * Thermal Motor Overload Protection * Siemens brand motor controls * Patented Z-block top slide block on adjustable gibs * Rolls for round tube/pipe/rod, special sections & serial production requirements * Special Lateral Guides with adjustable cam rollers and anti-torsion supports for leg-in angles, Special Conical Rolls for angle rolling leg in or out * Dual Speed version CP30P-2V * Rotating Head Version allows HORIZONTAL & VERTICAL operation Version without foot pedals, also with or w/out 2 speeds * Single phase power machines 220V 1 phase * Bar Twisting Device - Tight Diameter Rolls - Scroll Bending Device Finance Equipment For Your Business - Click Here Please visit our website to see our full line of roll benders Be sure to add me to your favorites list! |
