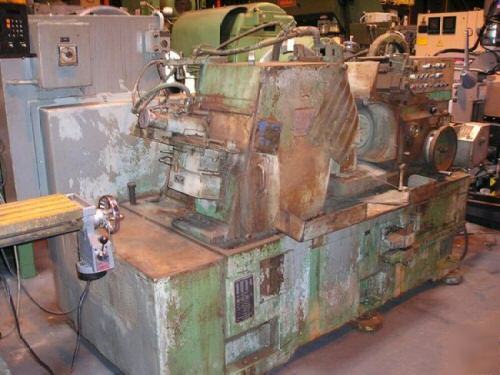

BRYANT MODEL 2CH CENTERLESS GRINDER Serial No. H15949 New 1974 Motor Driven With 20 HP, 1800 RPM, 3 Phase, 60 Cycle, AC Voltage Grinding Wheel Motor. 2 HP, 1200 RPM, 3 Phase, 60 Cycle, AC Voltage Regulating Wheel Motor. MD Coolant. Hy-Lift Grinding and Regulating Wheel Dressers Regulating Wheel Mount For 5" I.D. Wheels Chisel Point Diamond For Grinding Wheel Dresser Magazine Type Loading & Unload Fixture Capacity - Work Range 0 - 4.75" Grinding Wheel 24" O.D. x 12" I.D. Grinding Wheel Width 6" Max Regulating Wheel 12" O.D. x 5" I.D. Regulating Wheel Width 6" Max Approx. Dimensions 127" x 62" Approx. Weight 13,500 Lbs We have not run this machine, so we do not know how well it works. It is missing the hydraulic tank which is needed for infeed grinding, however you can still do thru-feed grinding. |
