Bliss SE2-160-2.1 straight side double crank press

UpUp


Subject: Bliss SE2-160-2.1 straight side double crank press

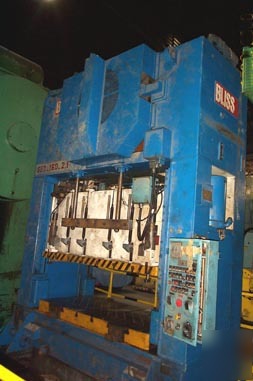

BLISS MODEL SE2-160-2.1 STRAIGHT-SIDE,
GEARED DESIGN, DOUBLE CRANK PRESS
Capacity: 175 Ton
Stroke: 7.9"
Shut Height Over Bed (SDAU): 20.9"
Slide Adjustment (Motorized): 4.7"
Bed Area: 82" L-R x 47.3" F-B
Slide Face Area: 82" L-R x 47.3" F-B (T-Slotted)
Opening in Bed: 68" L-R x 32.5" F-B
Pit Required: 36"
Speed (Variable): 20 - 50 SPM
Air Clutch and Brake with Selector Controls
Arranged for (4) F-B Knockouts
Tie Rod Construction
EQUIPPED WITH:
Pneumatic Die Cushion (33 Ton; 5.9" Stroke)
(2) Air Counterbalance Cylinders to Slide
Electrical Vari-Speed Main Drive Motor
Electrical Controls
Dual Palm Button Operation
Approximate Overall Dimensions: 144" L-R x 75" F-B x 180" H
Approximate Weight: 63,000 Lbs.(PIT REQUIRED: 36")
Serial Number: N/A (New 1978)
P2 F.O.B. Elk Grove, IL - $ 19,500.00
Email us at
Call our Sales Staff at
Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes.
Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power.
